DTC P2552: Throttle Actuator Control Module Relay Malfunction: Notes

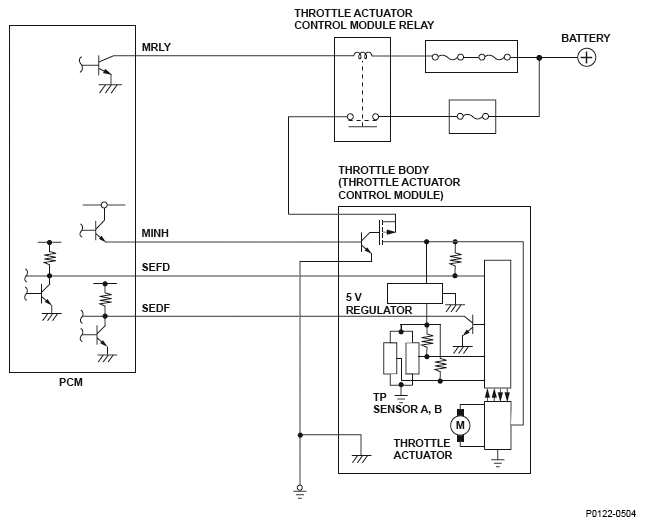

Fig 1: Throttle Actuator Control Module Circuit Diagram
G04816514
