Right Rear Power Window Switch Connector End View
Right Rear Power Window Switch Connector End View

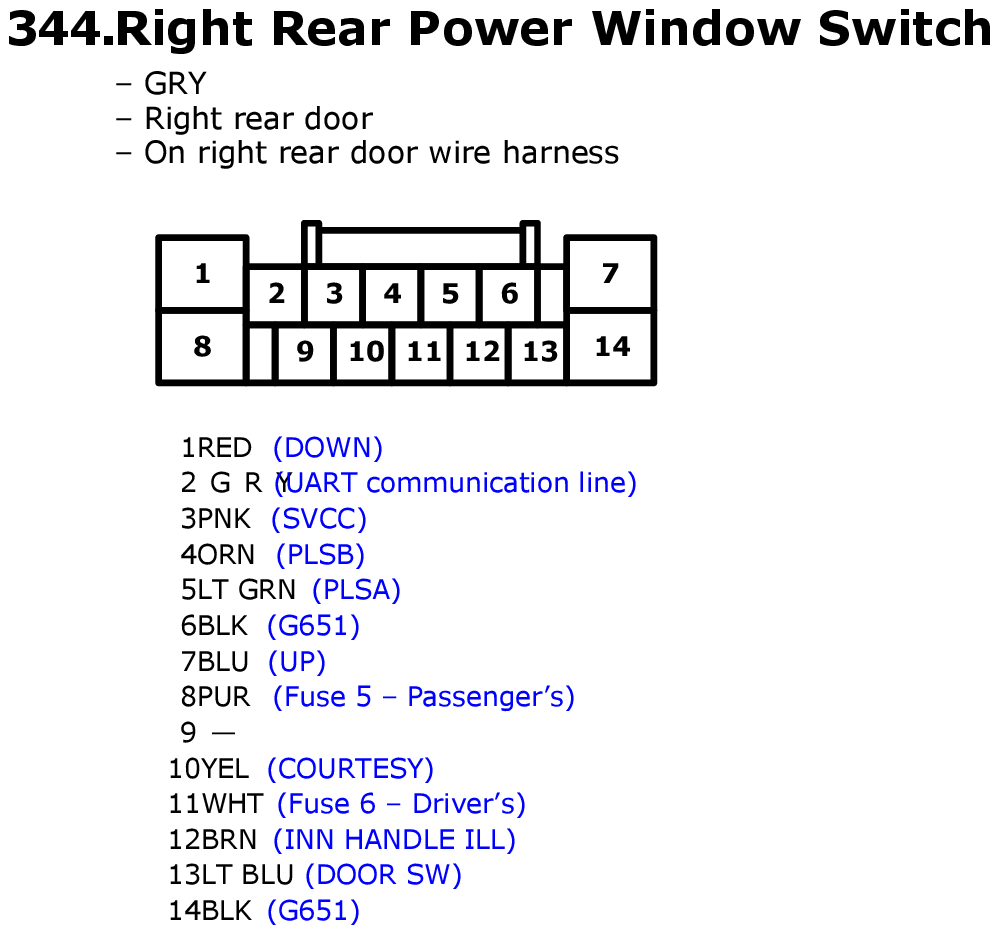

Fig 1: Right Rear Power Window Switch Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.

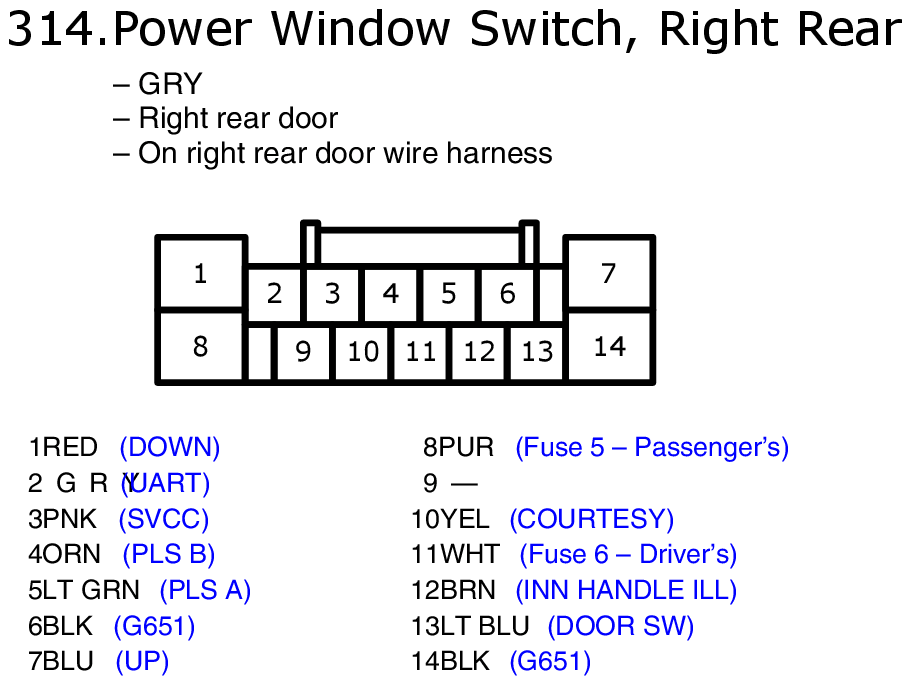

Fig 1: Right Rear Power Window Switch Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
