C659 (RES Normal without Navigation) Connector End View
C659 (RES Normal without Navigation) Connector End View

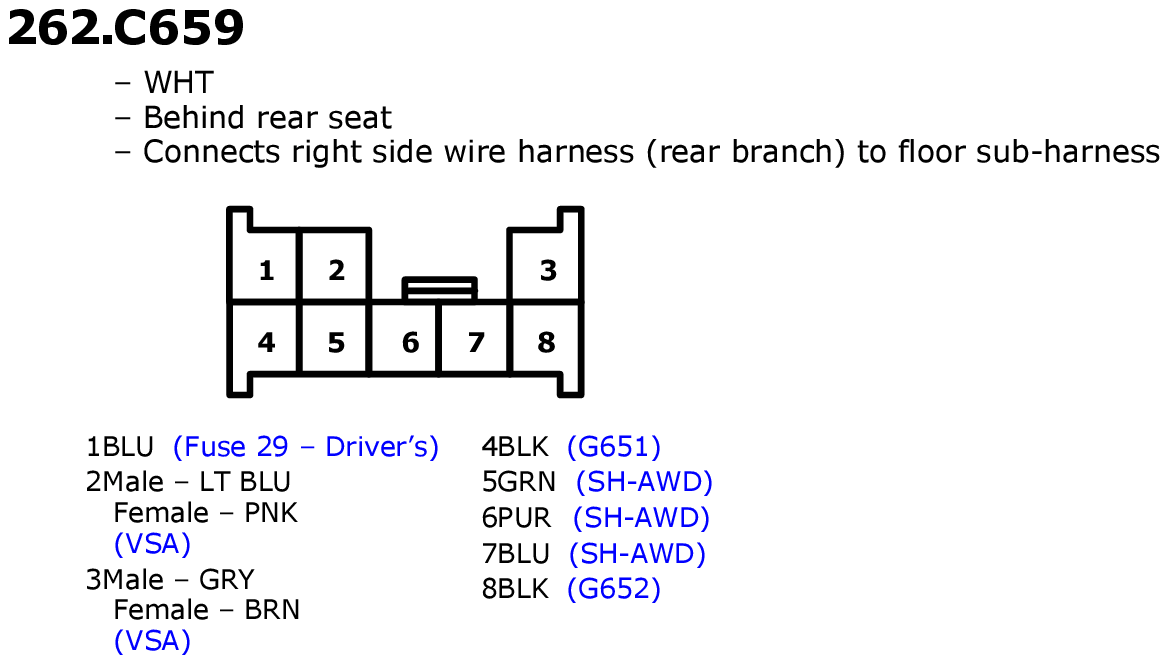

Fig 1: C659 (RES Normal without Navigation) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
