DRL Control Unit (USA) Connector End View
DRL Control Unit (USA) Connector End View

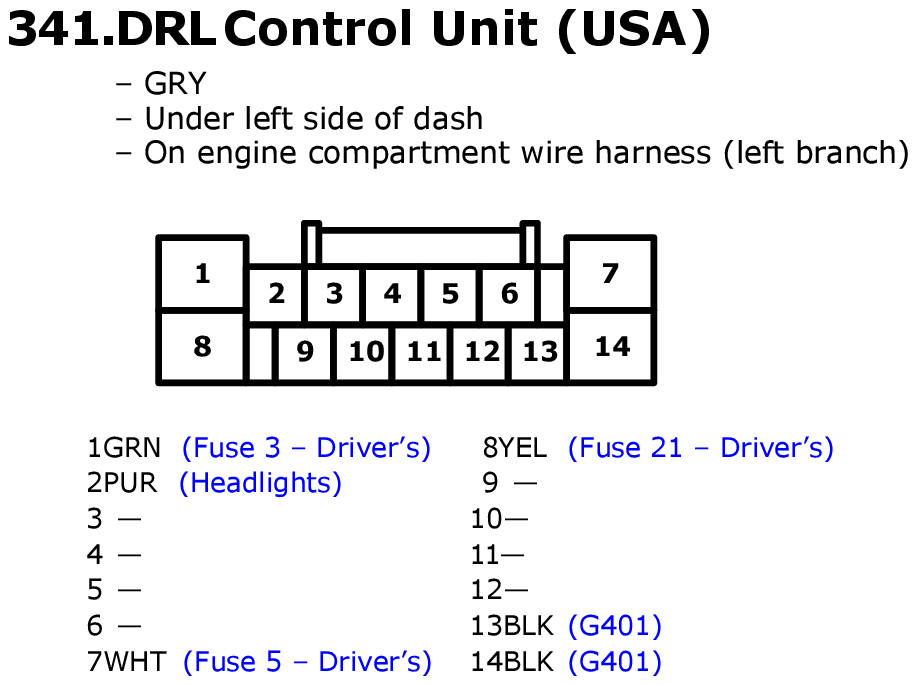

Fig 1: DRL Control Unit (USA) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.

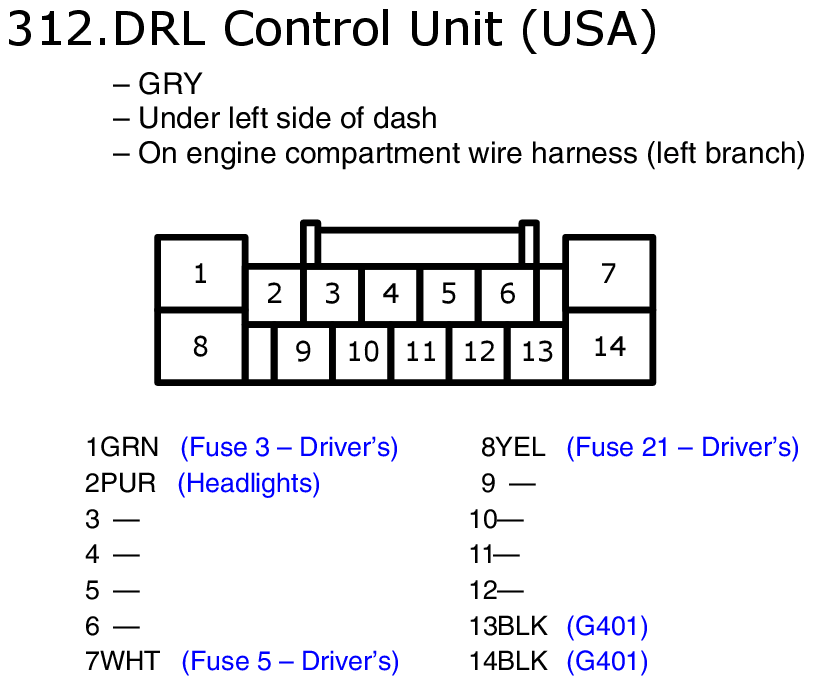

Fig 1: DRL Control Unit (USA) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
