PGM-FI System
›
Component Location Index
›
K20A3 engine-2002-2004 models
K20A3 engine-2002-2004 models

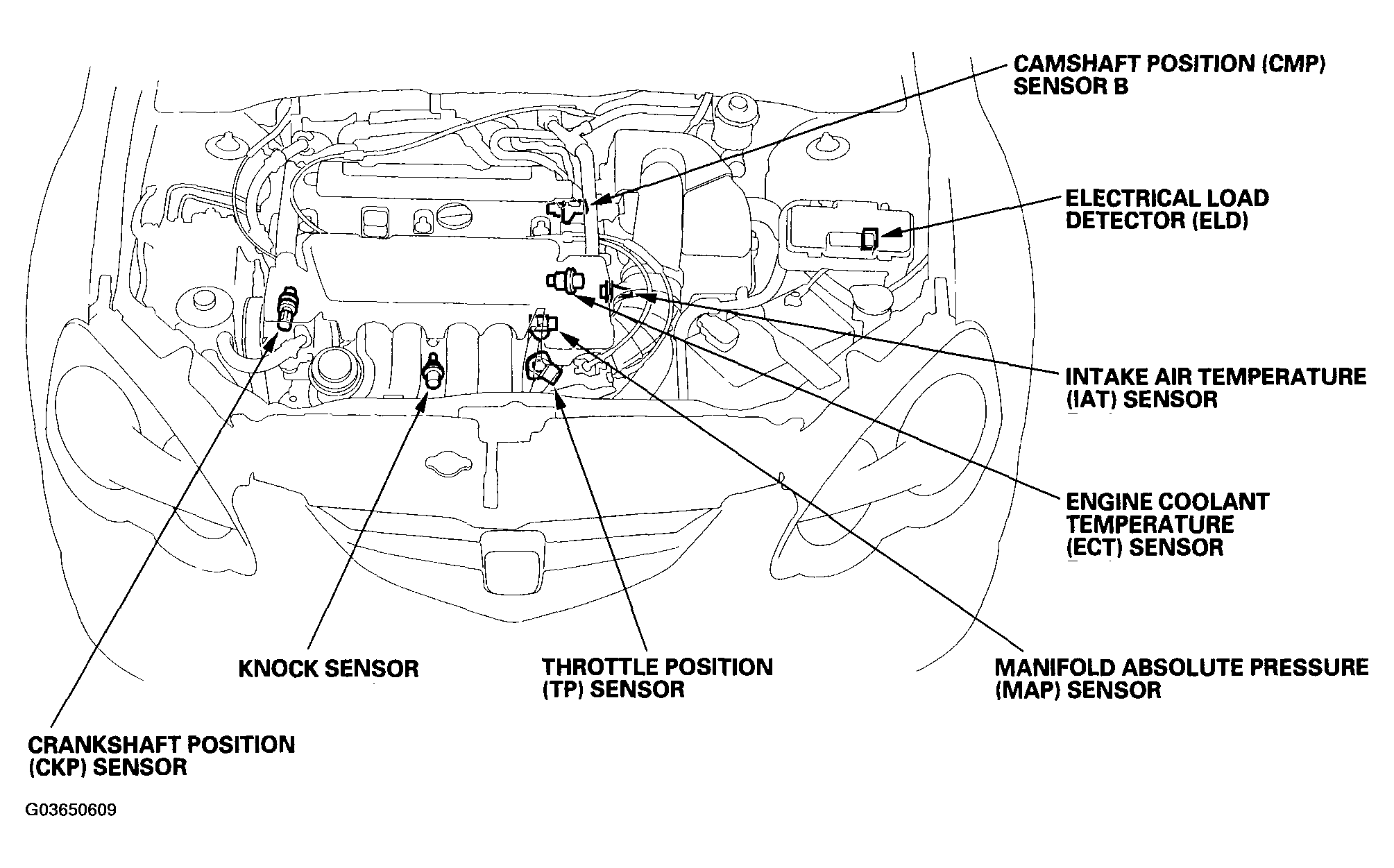

Fig 1: Identifying PGM - FI System Component Location Index (K20A3 Engine-2002-2004 Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
