Component Location Index

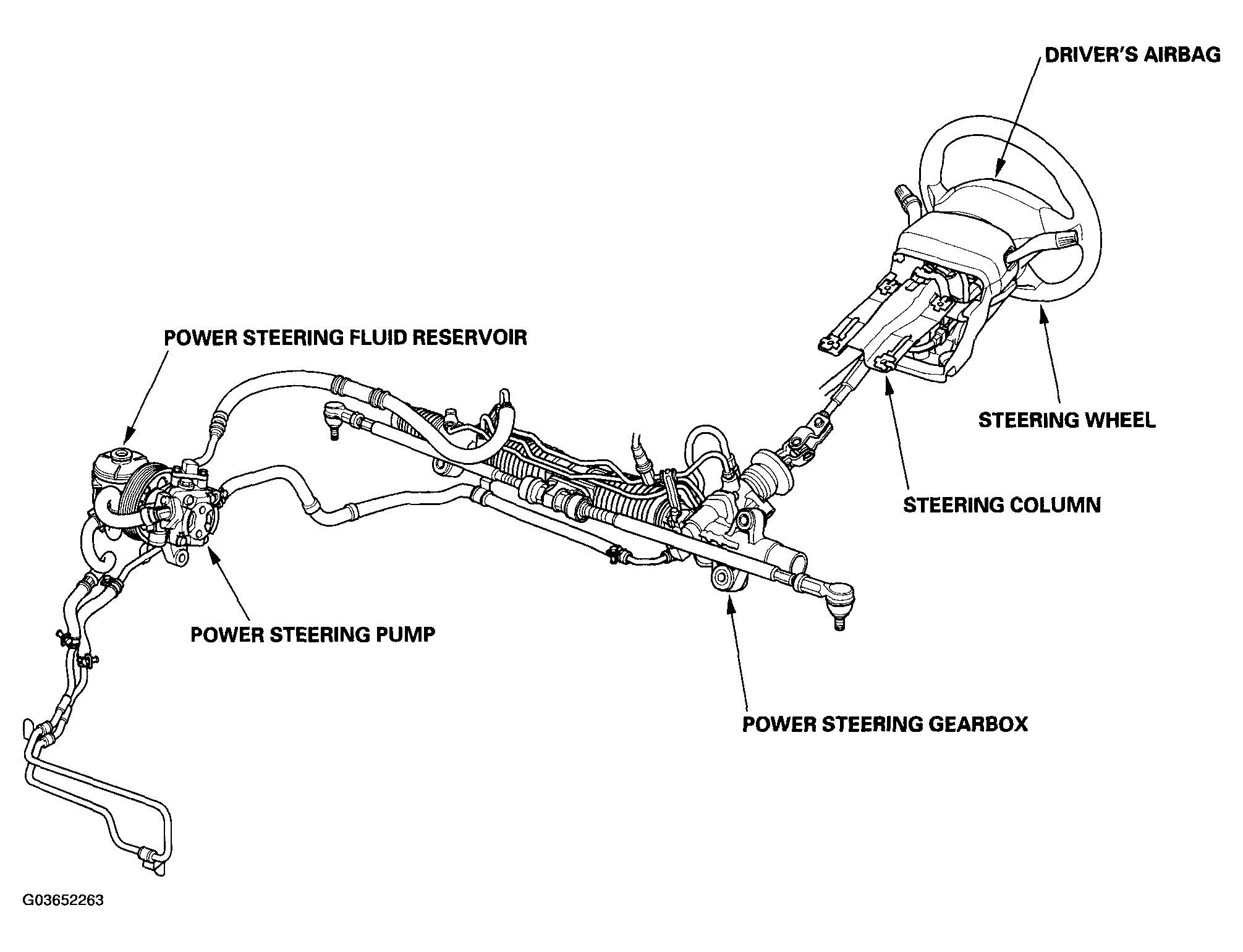

Fig 1: Locating Components Of Power Steering
G03652263Courtesy of AMERICAN HONDA MOTOR CO., INC.
