Exploded View: Notes

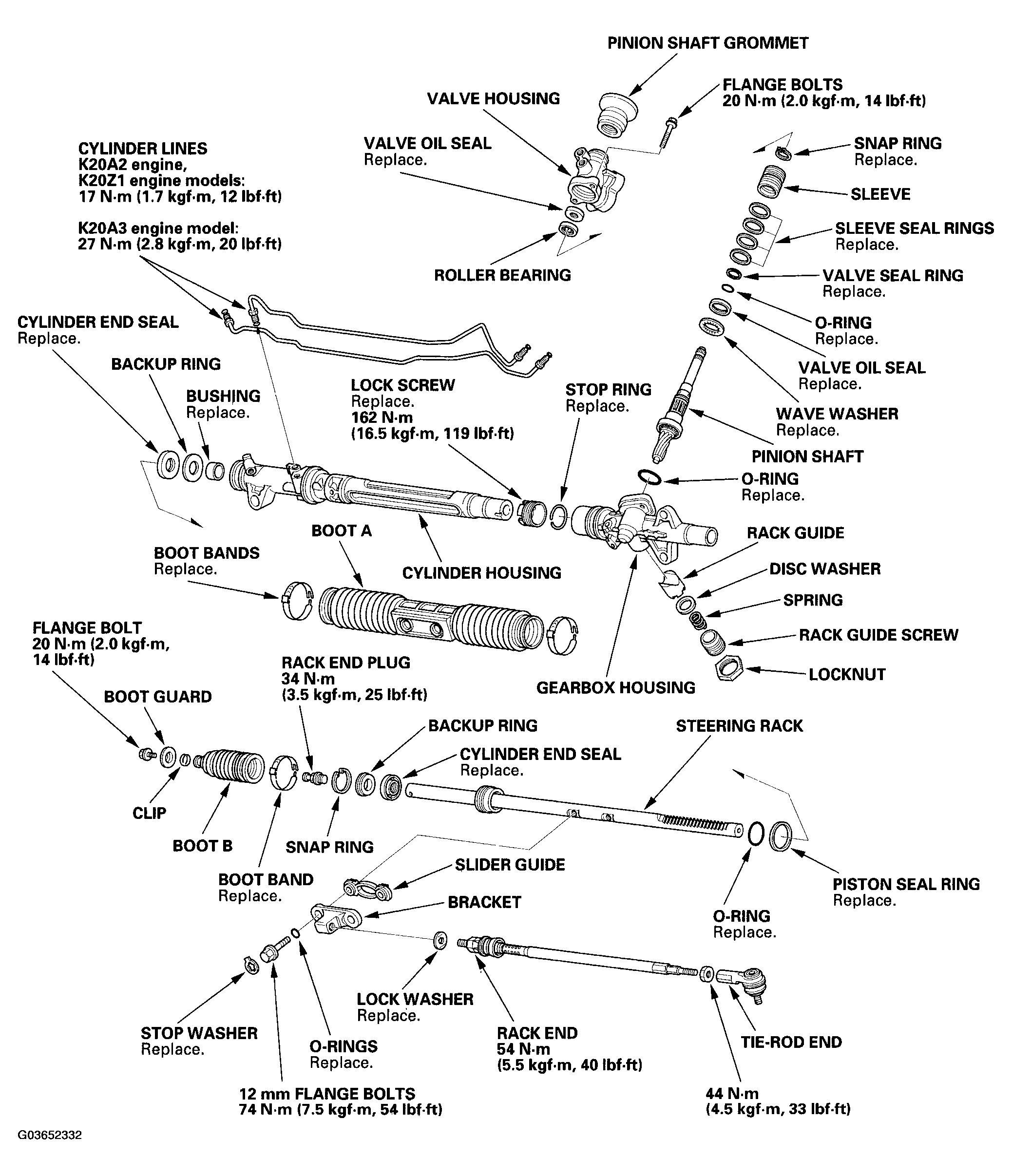

Fig 1: Exploded View Of Steering Gearbox Overhaul And Torque Specifications

G03652332

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required

Cylinder end seal remover attachment 07NAD-SR30200 or 07NAD-SR3020A
Driver, 27 mm 07ZAF-S5A0100
Valve seal ring sizing tool 07NAG-SR30900 or 07NAG-SR3090A
Sleeve seal ring guide 07YAG-S2X0100
Sleeve seal ring sizing tool, 36 mm 07ZAG-S5A0100
Attachment, 32 x 35 mm 07746-0010100
Driver 07749-0010000
Piston seal ring guide, 42 mm 07ZAG-S7A0100
Piston seal ring sizing tool, 42 mm 07ZAG-S7A0200
Piston seal ring guide, 44 mm 07XAG-S0KA200
Piston seal ring sizing tool, 44 mm 07XAG-S0KA100
Pilot collar 07GAF-PH70100
Lock nut wrench 07ZAA-S5A0100
Driver handle 07NAD-SR30101
Cylinder end seal slider 07974-6890801 or 07974-689080A
Valve seal ring guide 07ZAG-S5A0200
Pincers, Oetiker 1098 or equivalent, commercially available

NOTE: Refer to the EXPLODED VIEW as needed during this procedure.
