DTC P2118: Throttle Actuator Current Circuit Range/Performance Problem: Notes

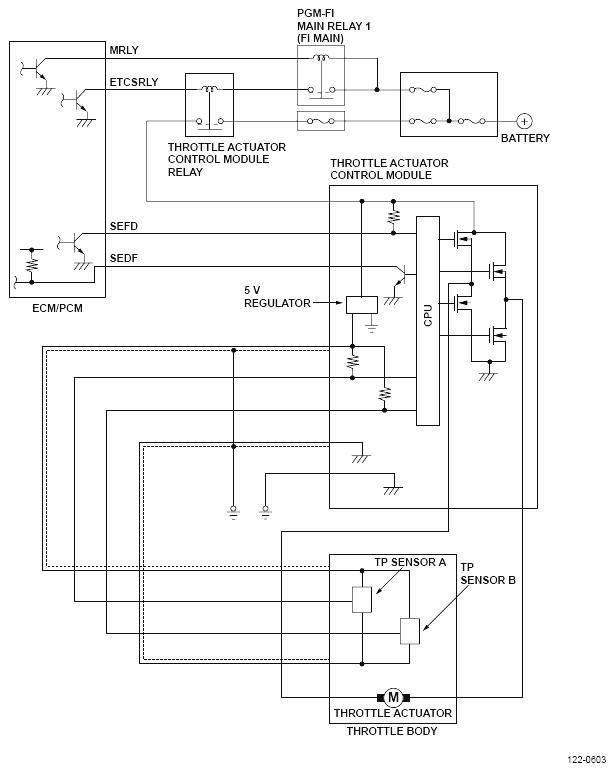

Fig 1: Throttle Actuator Control Module Circuit Diagram
G04817164
