Component Location Index

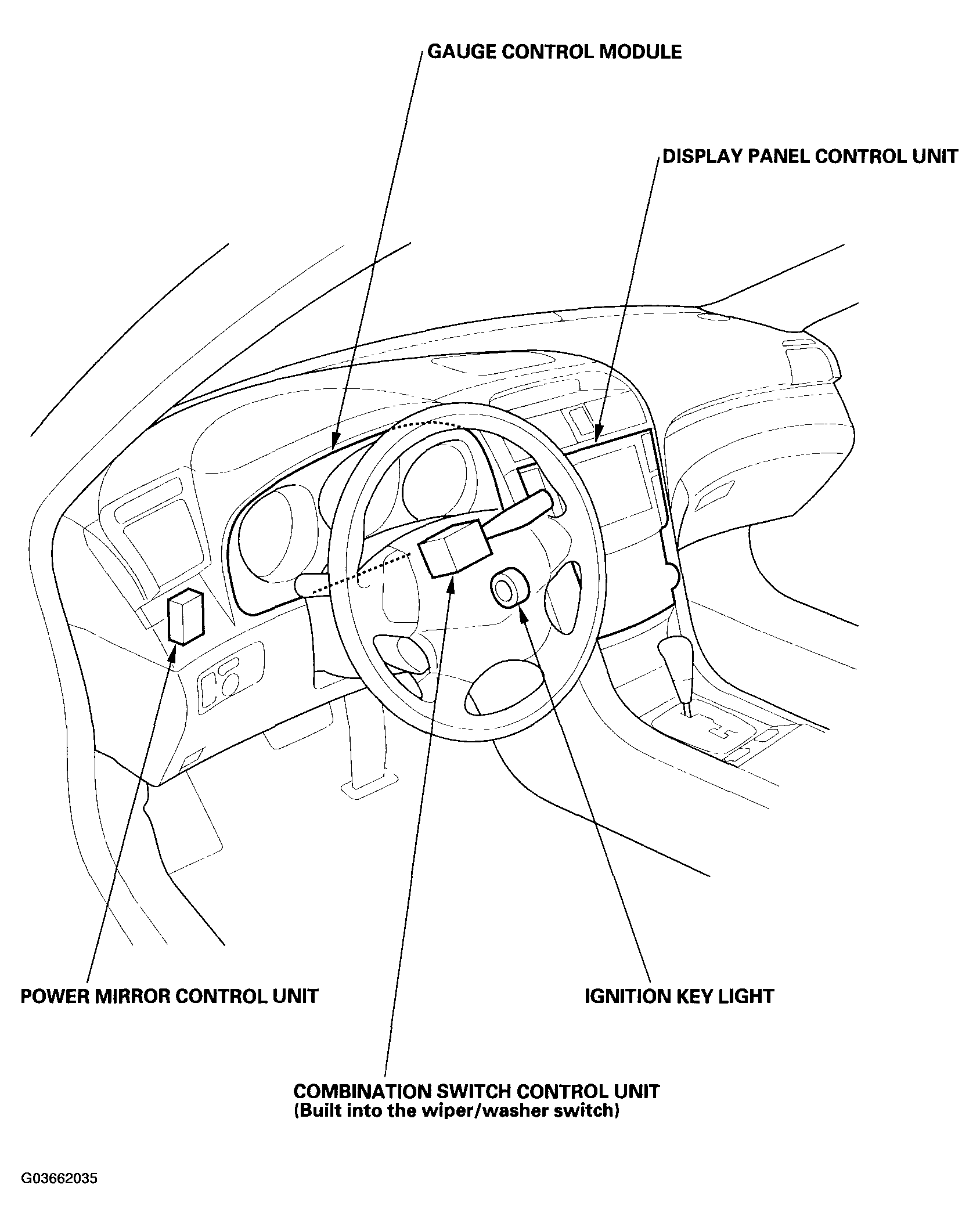

Fig 1: Multiplex Integrated Control System - Component Location Index (1 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

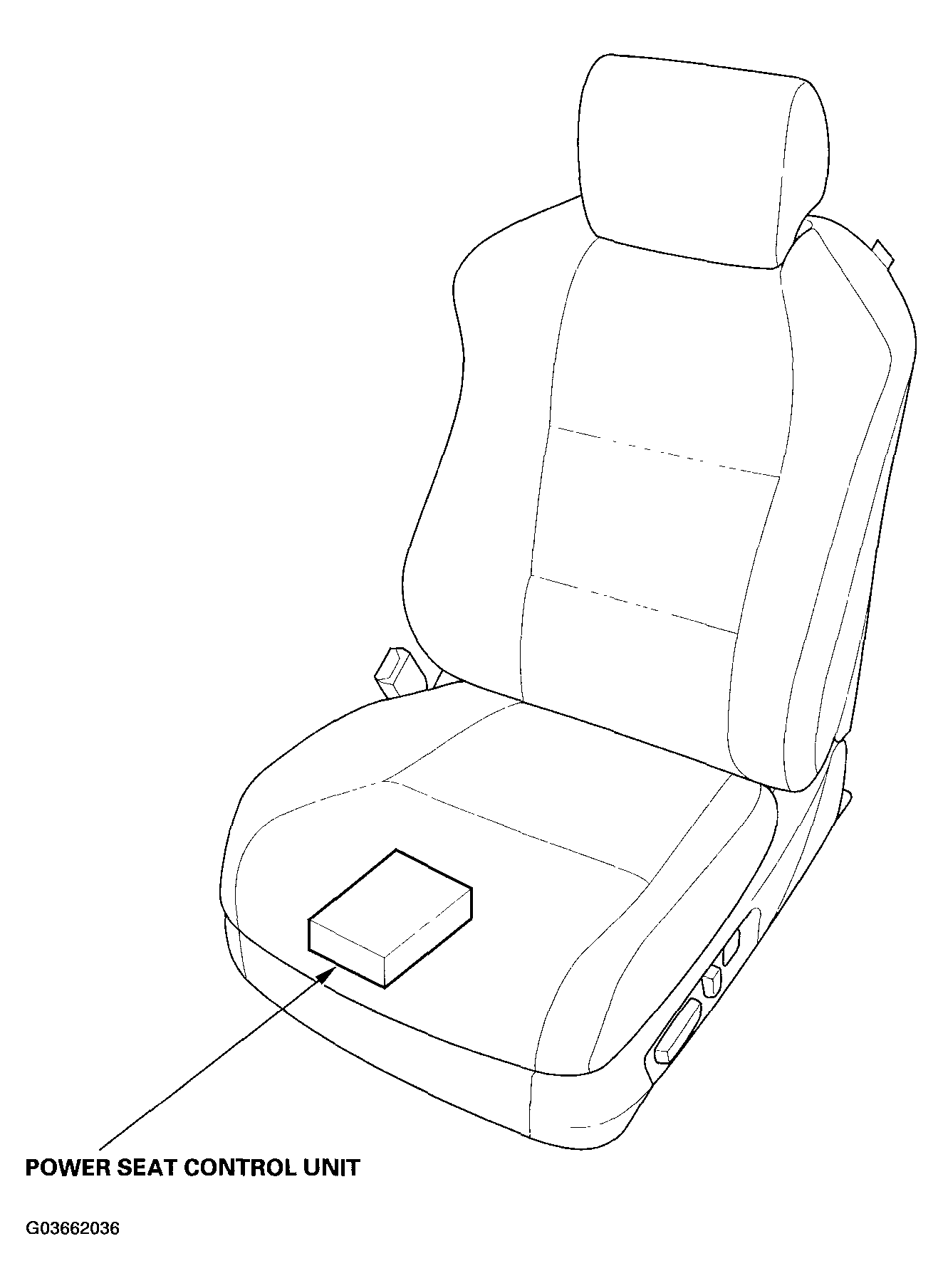

Fig 2: Multiplex Integrated Control System - Component Location Index (2 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

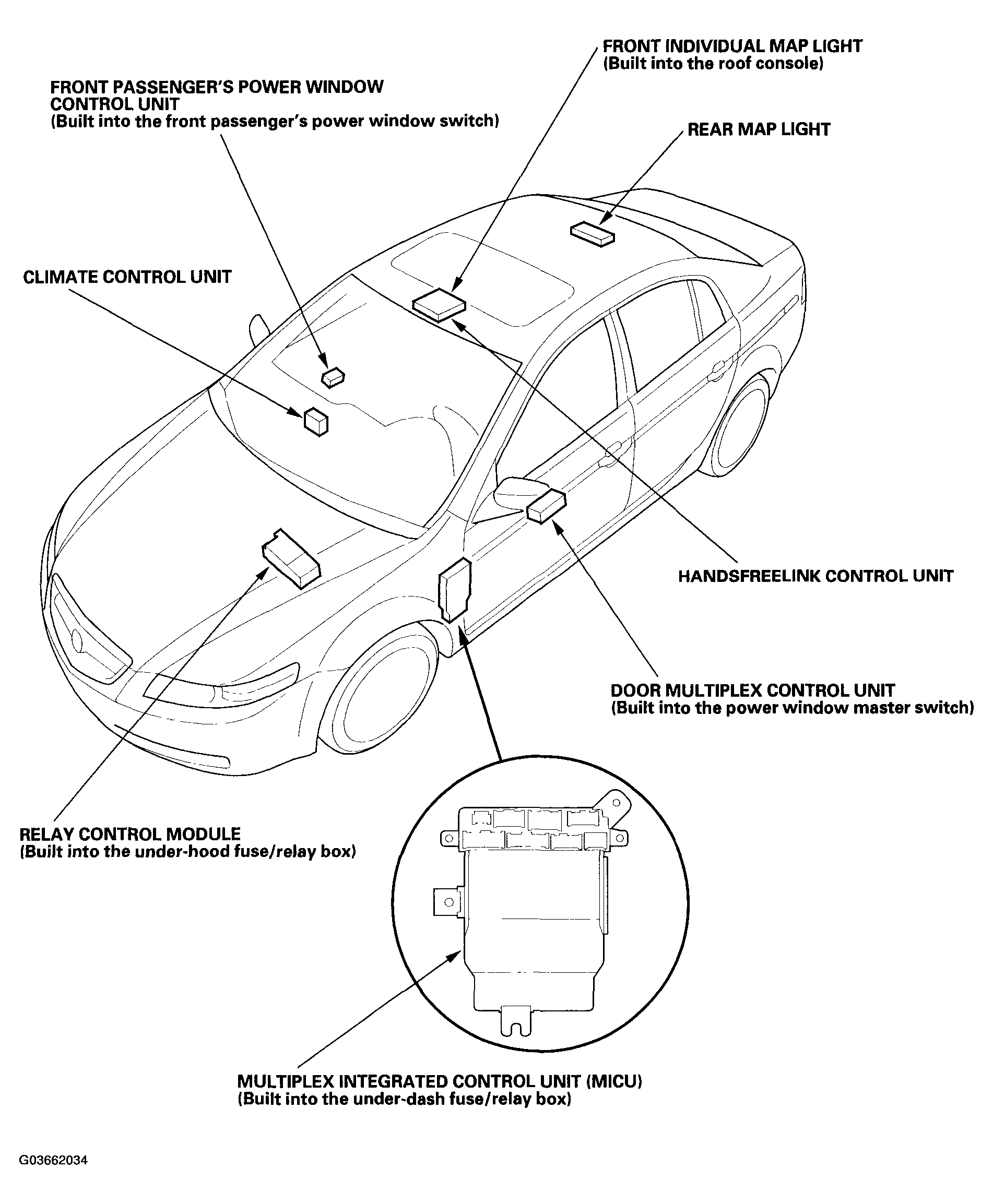

Fig 3: Multiplex Integrated Control System - Component Location Index (3 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
