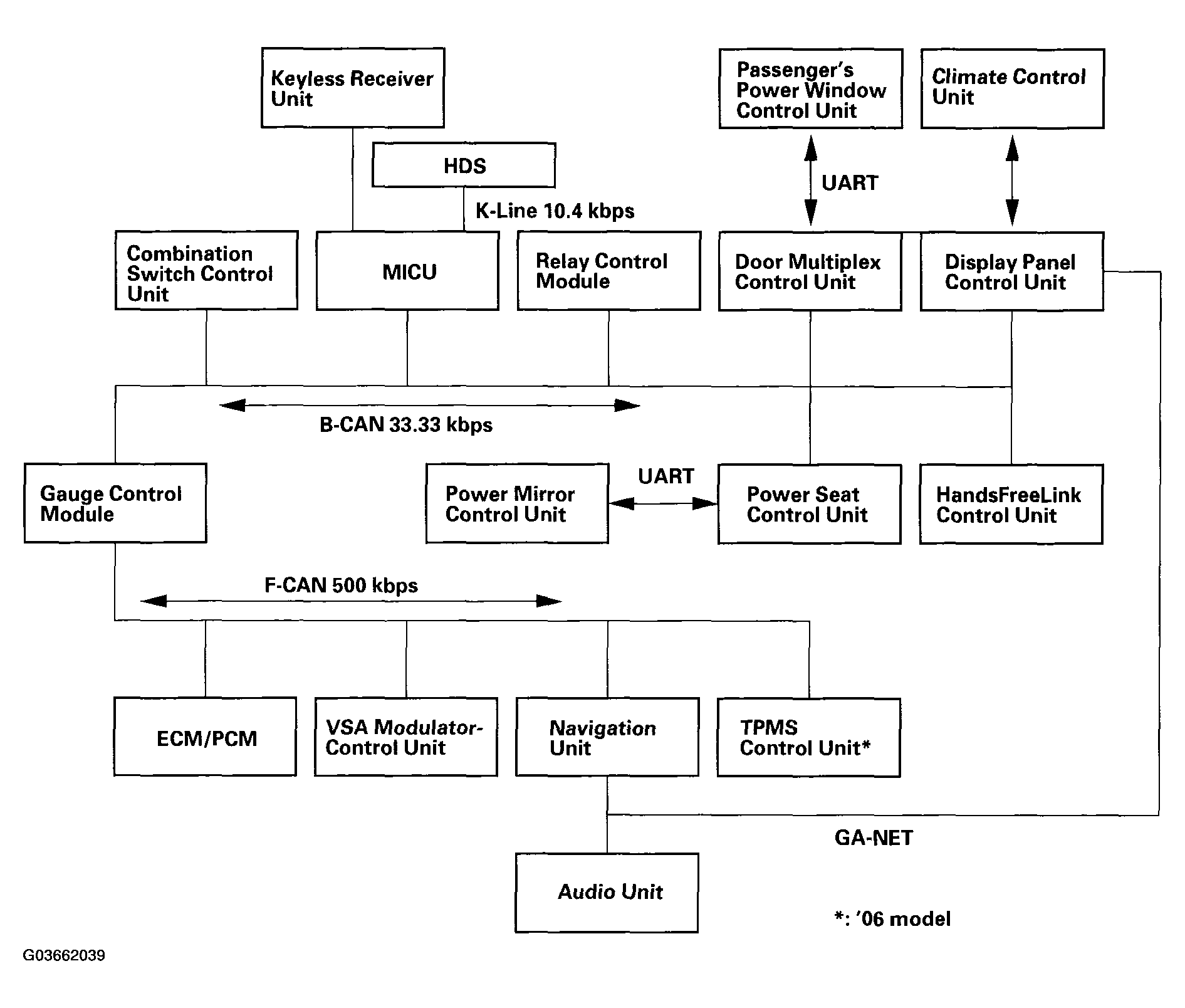

Connected ECUs
Several ECUs are connected to each of the two networks. The gauge control module is part of both networks since it is the "gateway" between them. Here is a list of ECUs and the network they are connected to.
B-CAN ECUs
- Gauge control module
- Relay control module
- Multiplex integrated control unit (MICU)
- Door multiplex control unit
- Combination switch control unit
- Display panel control unit
- Hands Free Link control unit
- Power seat control unit
F-CAN ECUs
- Gauge control module
- ECM/PCM
- Navigation unit
- VSA modulator-control unit
- TPMS control unit ('06 model)
