Component Location Index

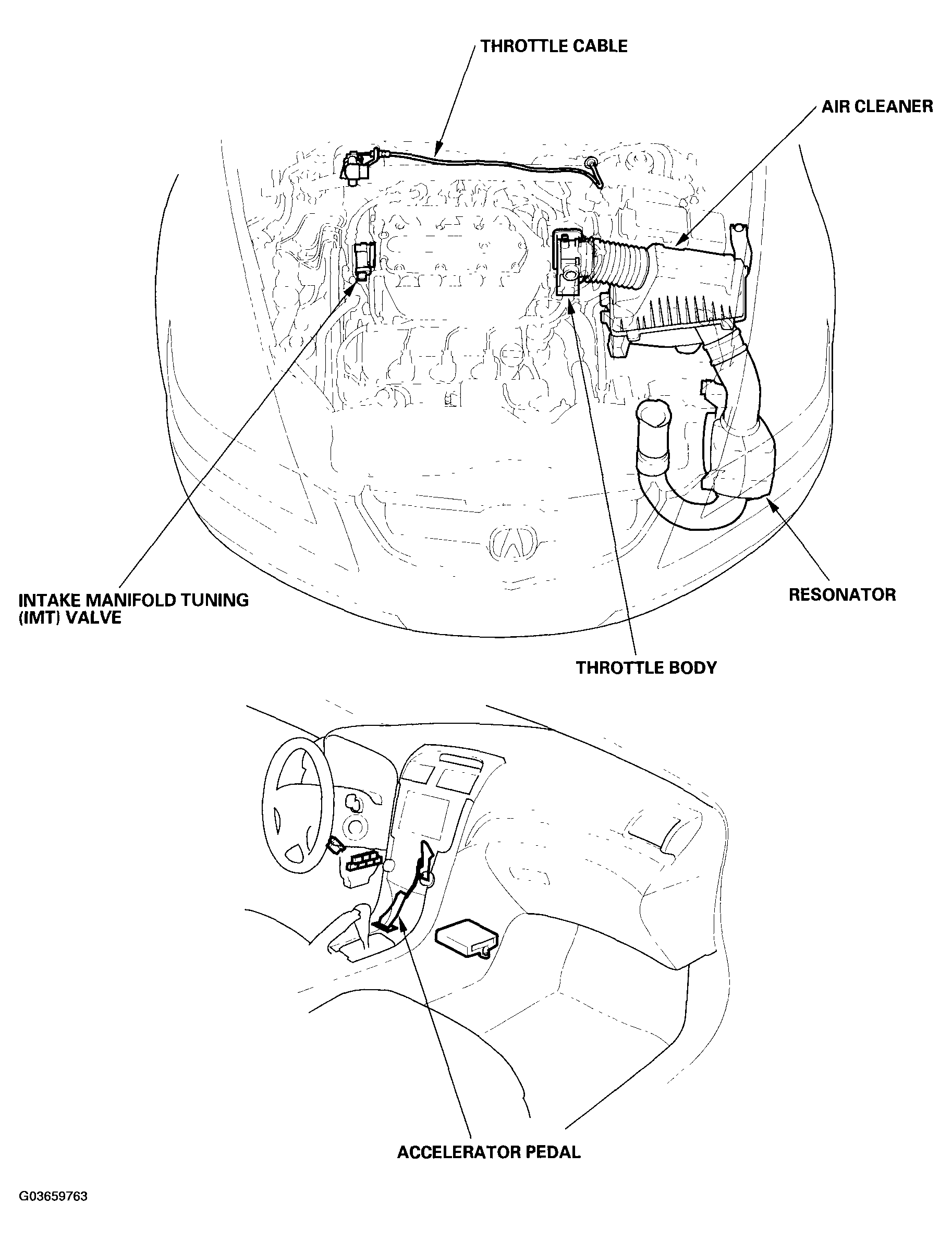

Fig 1: Identifying Intake Air System Components Location
G03659763Courtesy of AMERICAN HONDA MOTOR CO., INC.
