ECM/PCM Circuit Diagram (K20Z2 engine)

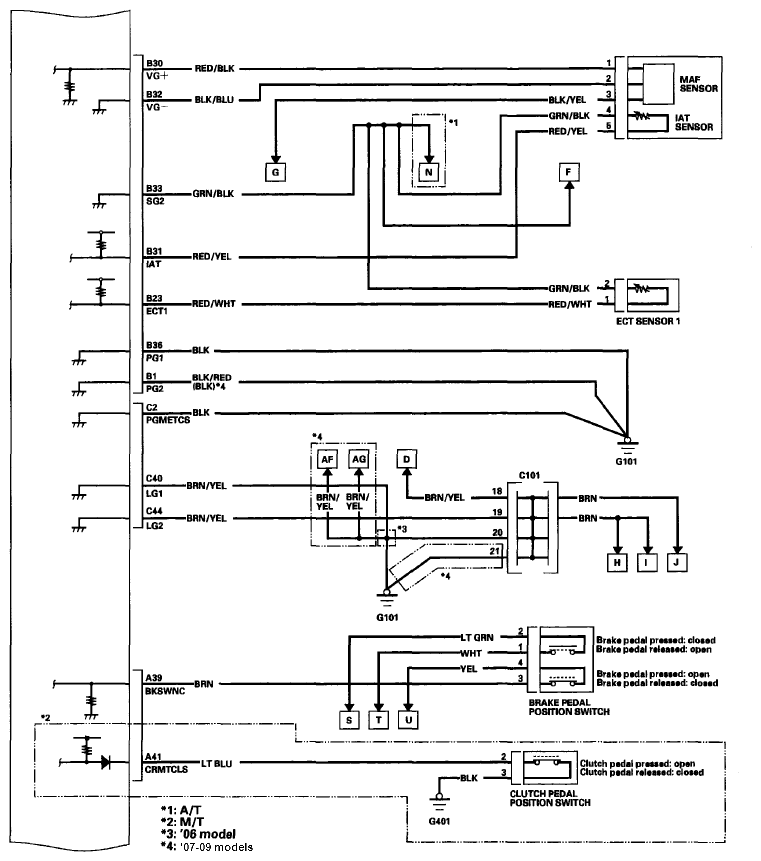

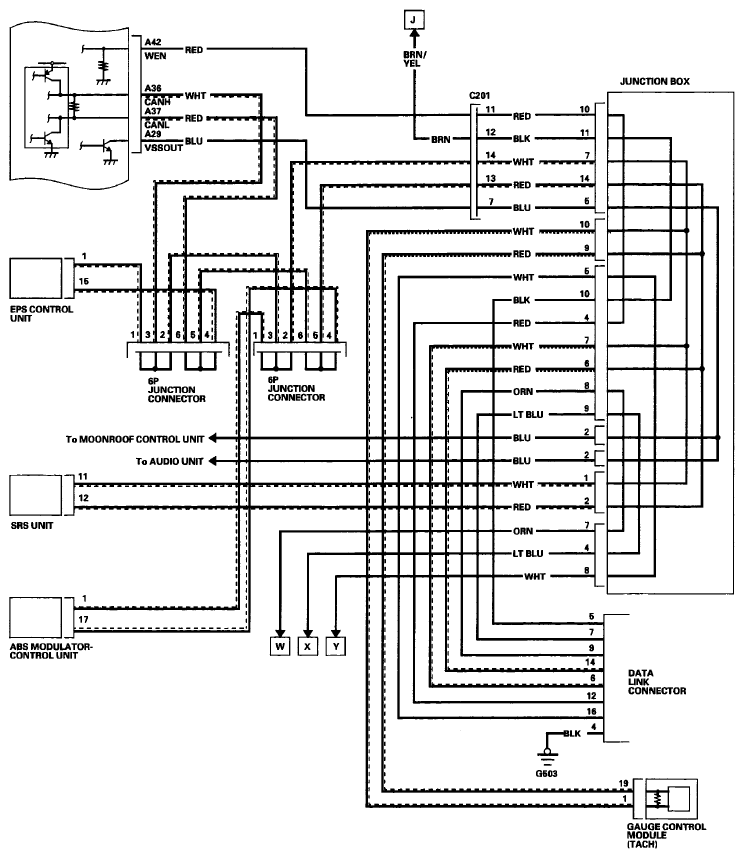

Fig 1: ECM/PCM - Circuit Diagram (K20Z2 Engine) (1 Of 11)

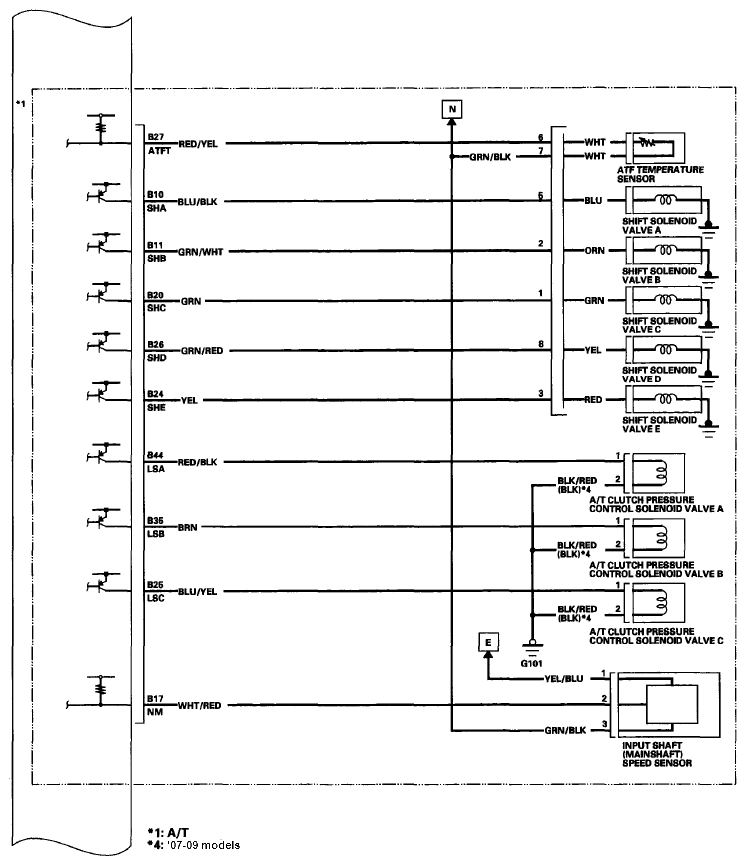

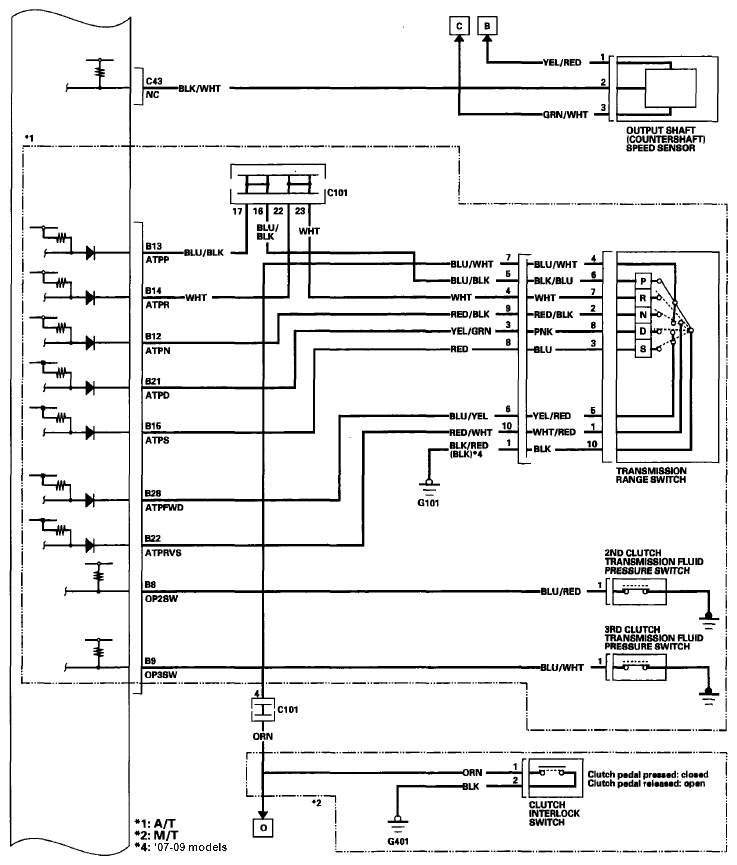

Fig 2: ECM/PCM - Circuit Diagram (K20Z2 Engine) (2 Of 11)

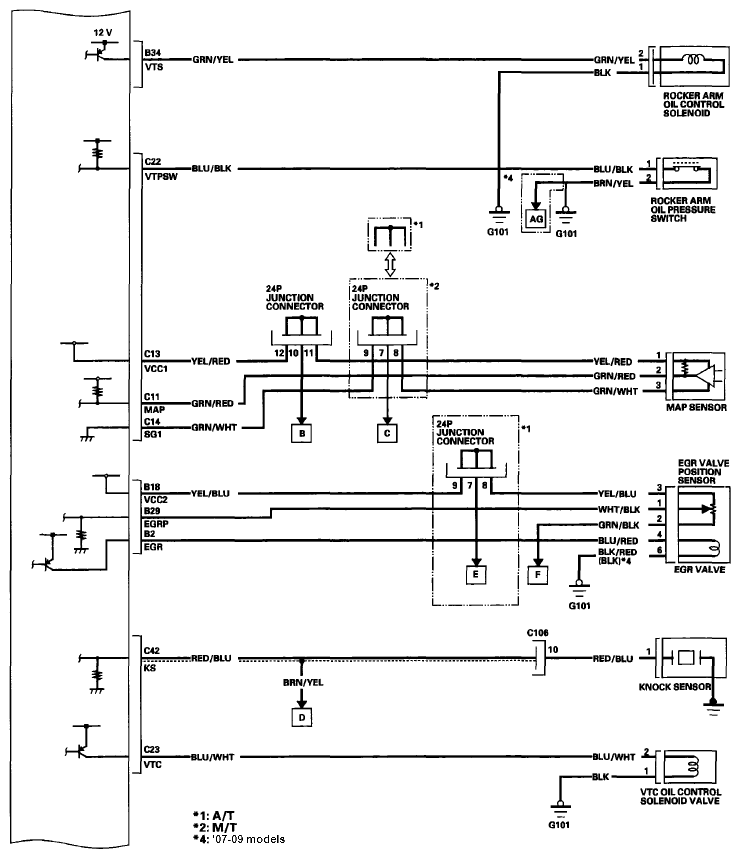

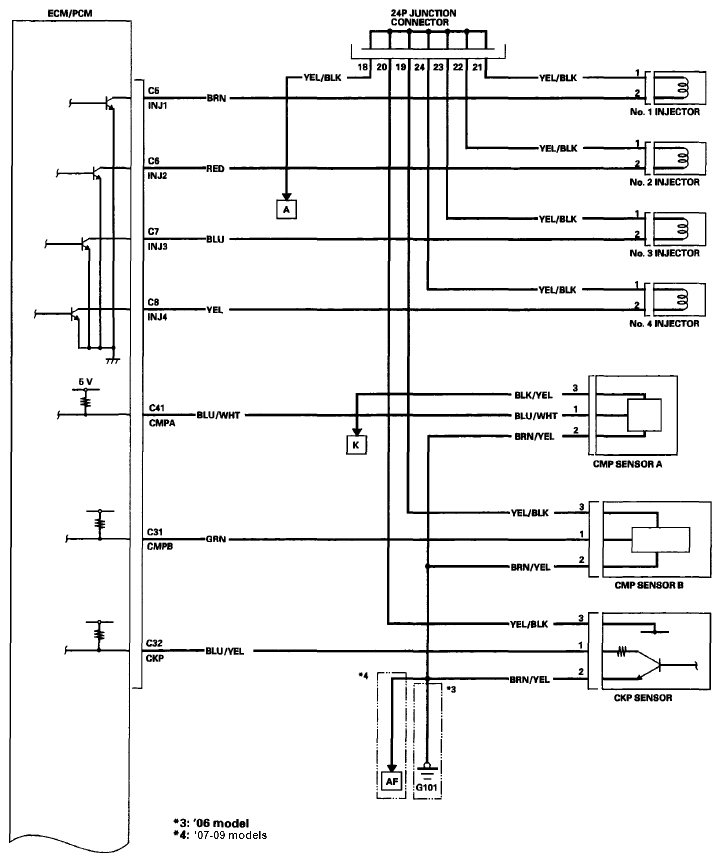

Fig 3: ECM/PCM - Circuit Diagram (K20Z2 Engine) (3 Of 11)

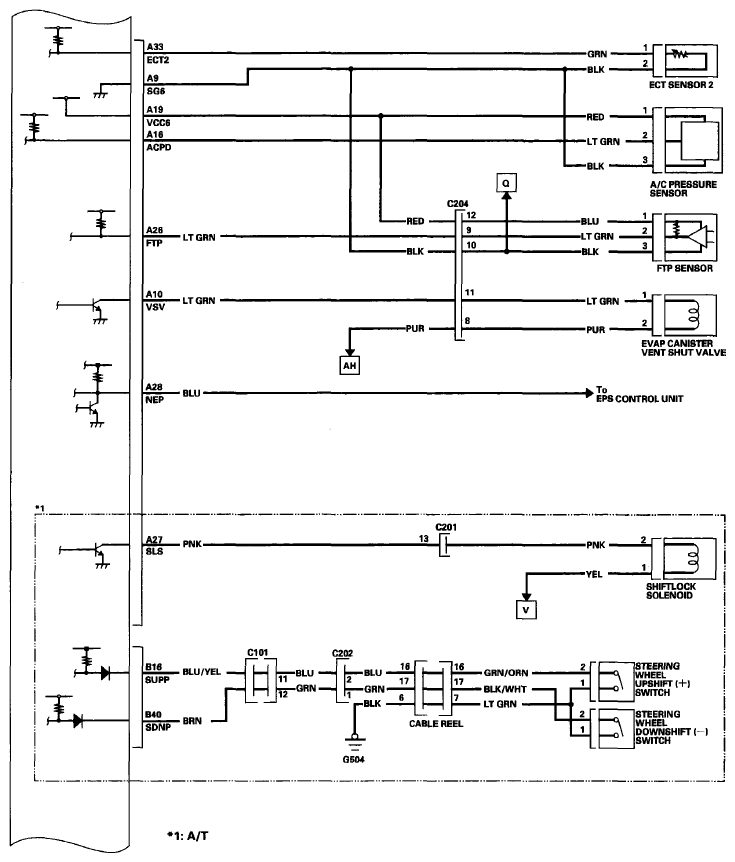

Fig 4: ECM/PCM - Circuit Diagram (K20Z2 Engine) (4 Of 11)

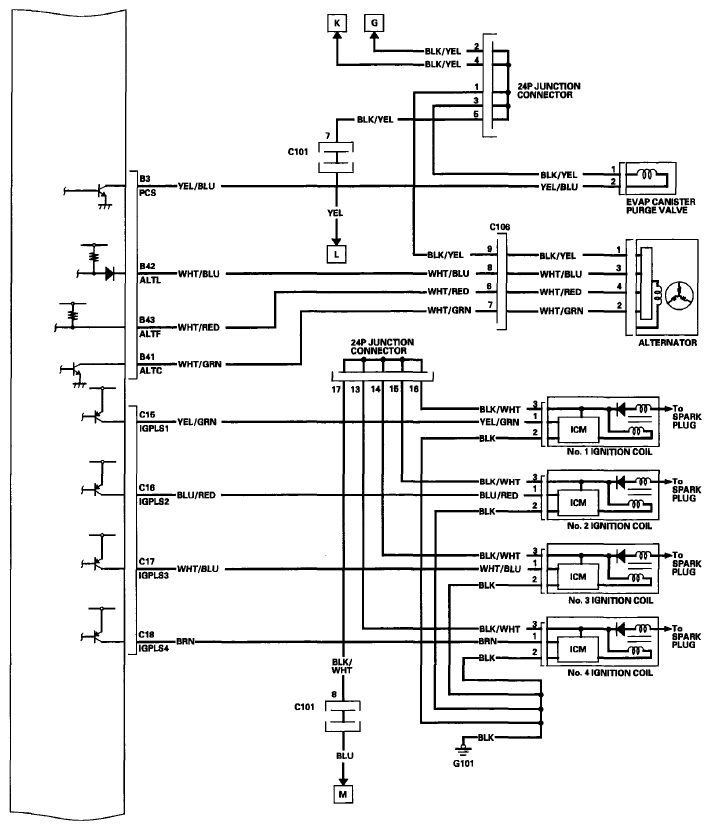

Fig 5: ECM/PCM - Circuit Diagram (K20Z2 Engine) (5 Of 11)

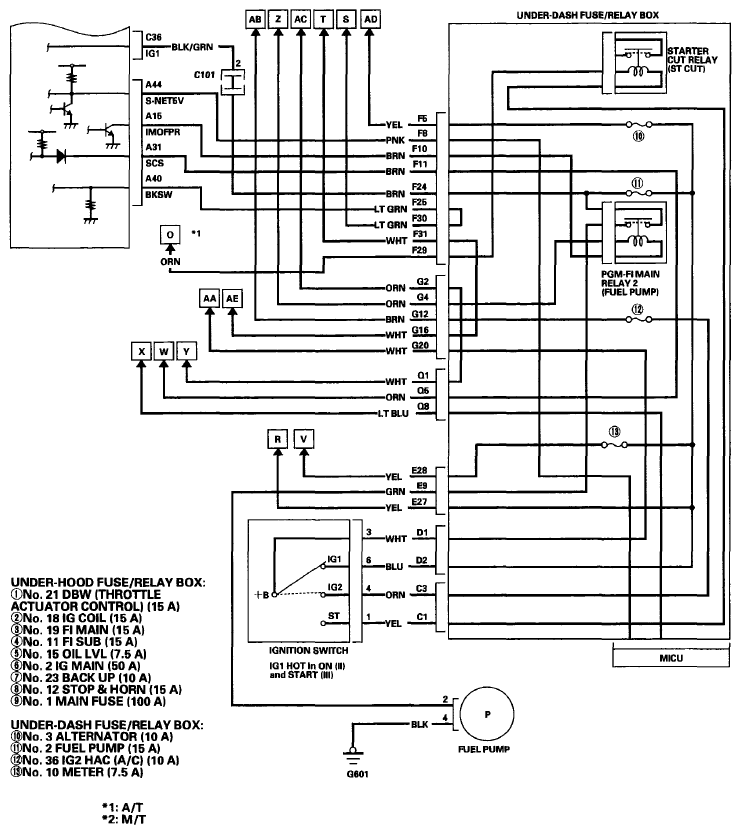

Fig 6: ECM/PCM - Circuit Diagram (K20Z2 Engine) (6 Of 11)

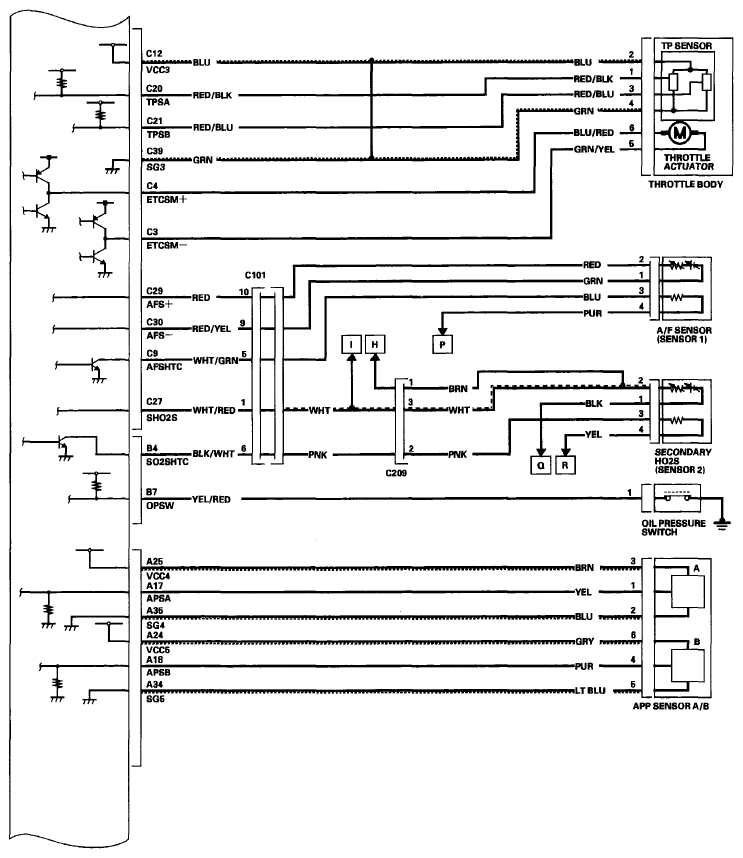

Fig 7: ECM/PCM - Circuit Diagram (K20Z2 Engine) (7 Of 11)

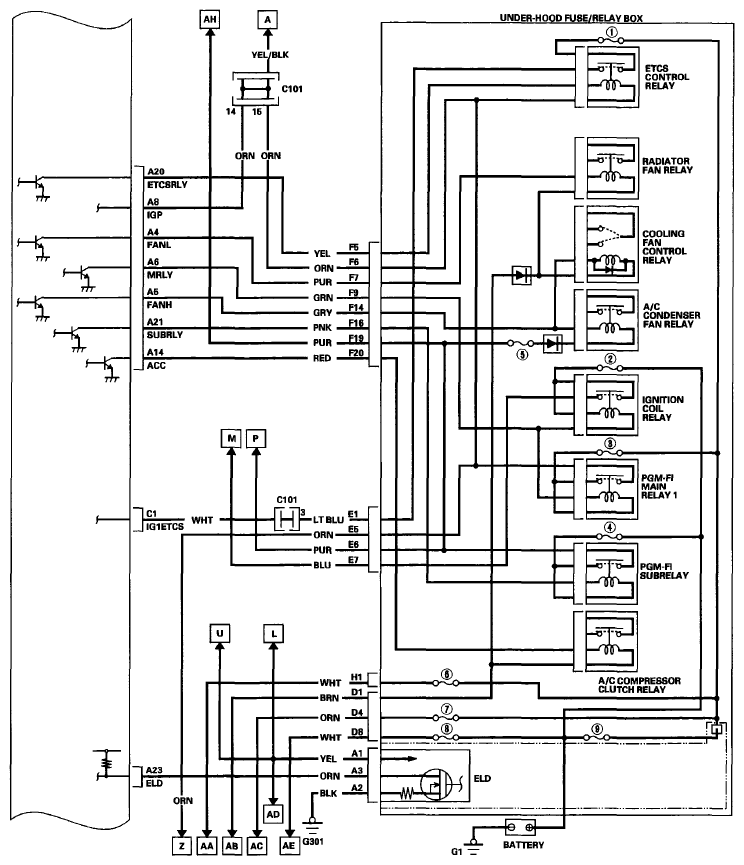

Fig 8: ECM/PCM - Circuit Diagram (K20Z2 Engine) (8 Of 11)

Fig 9: ECM/PCM - Circuit Diagram (K20Z2 Engine) (9 Of 11)

Fig 10: ECM/PCM - Circuit Diagram (K20Z2 Engine) (10 Of 11)

Fig 11: ECM/PCM - Circuit Diagram (K20Z2 Engine) (11 Of 11)
