Component Location Index

NOTE: '07-09 models have a long tang on 76.2 mm thrust washer. Thrust washer shown in following illustrations applies to '06 model only.

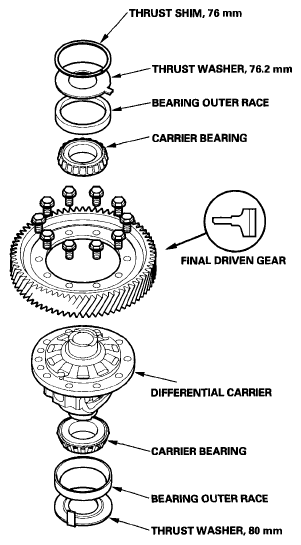

Fig 1: Identifying A/T Differential Component Location
G06265358Courtesy of AMERICAN HONDA MOTOR CO., INC.
