Tensioner Pulley Replacement

Remove the drive belt (see DRIVE BELT INSPECTION ).
Remove the pulley bolt (A), then remove the tensioner pulley (B).

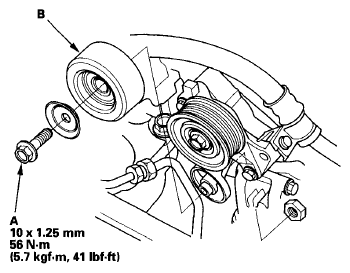

Fig 1: Pulley Bolt And Tensioner Pulley With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the tensioner pulley in the reverse order of removal.
