CMP Pulse Plate A Replacement

Remove the cylinder head cover (see CYLINDER HEAD COVER REMOVAL ).
Remove camshaft position (CMP) sensor A (see CMP SENSOR A REPLACEMENT ).
Hold the camshaft with an open-end wrench, then loosen the bolt.

Fig 1: Loosening Bolts With Open-End Wrench
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove camshaft position (CMP) pulse plate A.

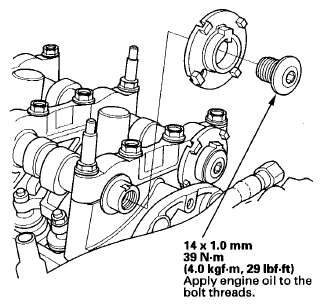

Fig 2: Camshaft Position (CMP) Pulse Plate With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install CMP pulse plate A in the reverse order of removal.
