Component Location Index

Fig 1: Identifying Cylinder Head Component Location

Courtesy of AMERICAN HONDA MOTOR CO., INC.

K20Z2

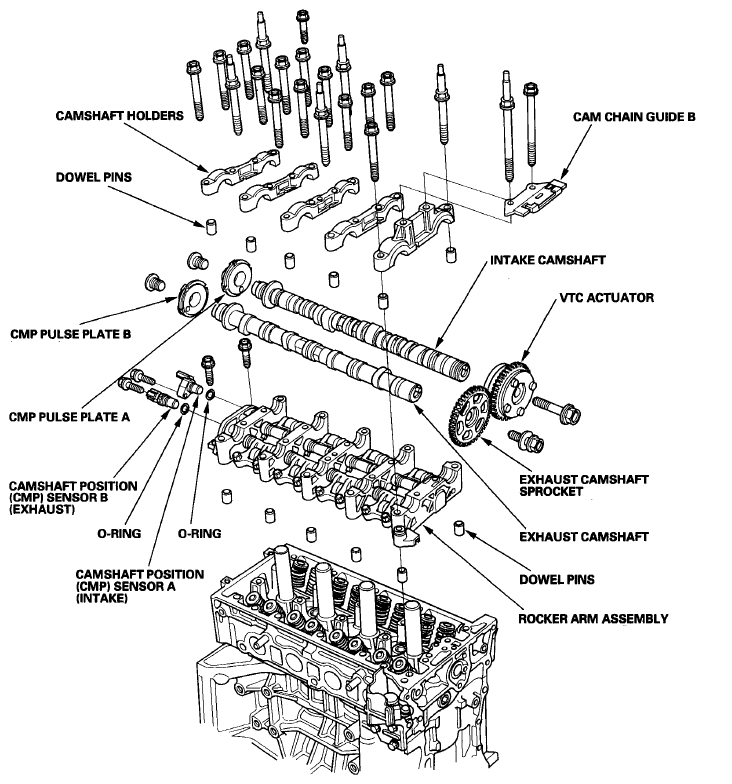

Fig 2: Identifying Cylinder Head Component Location (K20Z2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

K20Z3

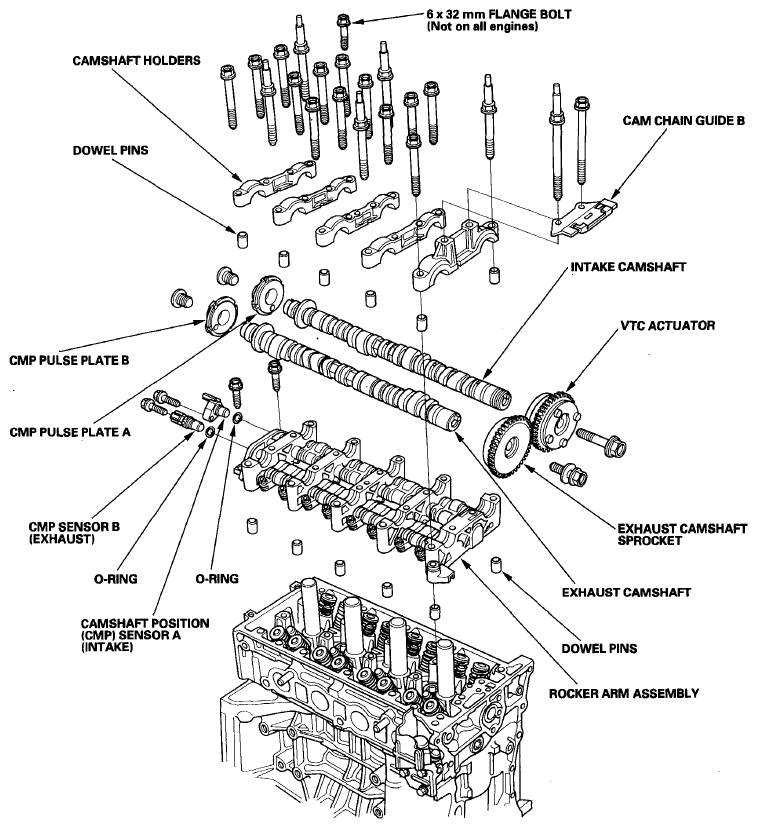

Fig 3: Identifying Cylinder Head Component Location (K20Z3) (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

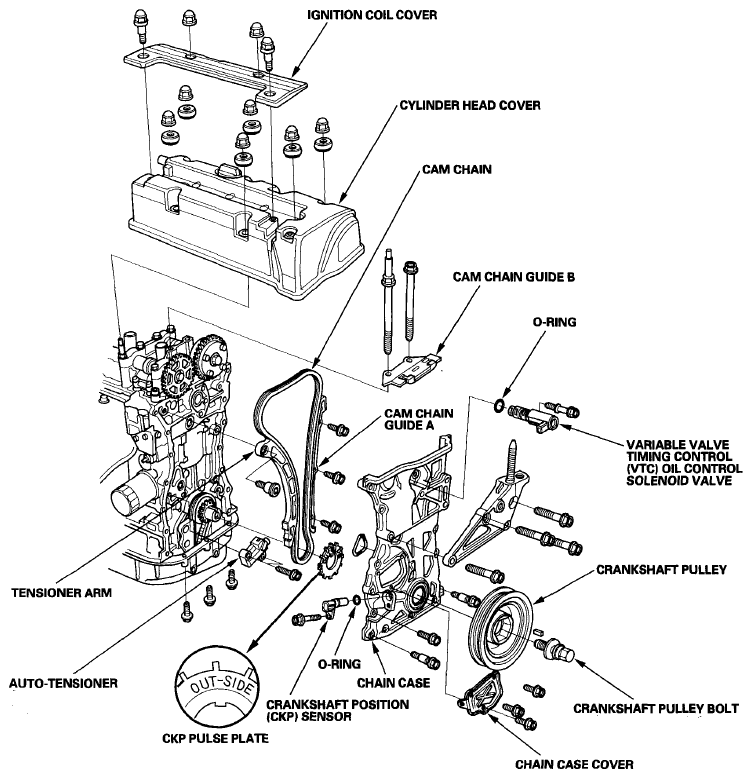

Fig 4: Identifying Cylinder Head Component Location (K20Z3) (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
