Front Air Guide Plate Replacement

WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Take care not to scratch the body

Remove the bolts, and release the hooks (A), then remove the front air guide plate (B)

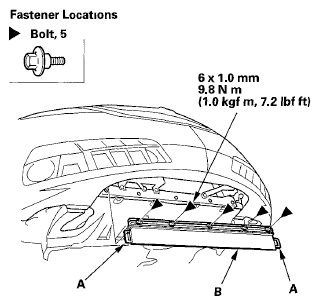

Fig 1: Front Air Guide Plate, Hooks And Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the plate in the reverse order of removal
