Front Strake Replacement

WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Take care not to scratch the body. When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.

Remove the bolts, and the clip, and release the front strake (A) from the front air guide plate (B), then remove the front strake

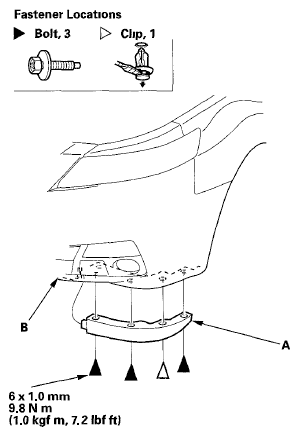

Fig 1: Front Strake, Front Air Guide Plate, Bolts And Clips With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the strake in the reverse order of removal, and note these items

If the clip is damaged or stress-whitened, replace it with a new one
Push the clip into place securely
