Glass Replacement

WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

Close the glass fully
Slide the sunshade all the way back
Pry out the cap (A) Remove the screw (B), and release the guide pin (C), then remove the bracket cover (D) Repeat on the opposite side Remove the screws (E) with a TORX T25 bit from the glass brackets (F) on both sides

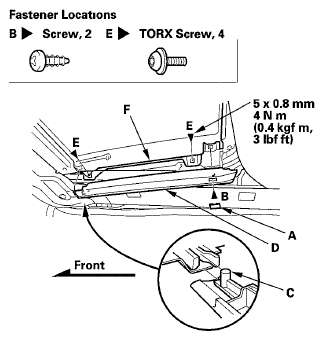

Fig 1: Cap, Screw, Guide Pin, Bracket Cover And Glass Brackets With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the glass (A) by lifting it up Do not damage the roof panel

Fig 2: Identifying Glass
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the glass in the reverse order of removal, then do these items
- Do the glass position alignment procedure (see GLASS POSITION ADJUSTMENT )
- Reset the moonroof control unit (see RESETTING THE MOONROOF CONTROL UNIT )
Check for water leaks (see step 9 on DOOR GLASS ADJUSTMENT ) Use free-flowing water from a hose without a nozzle Do not use high-pressure water
NOTE: It is normal for some water to seep past the moonroof into the moonroof frame, and exit through the drains
