Front Subframe Alignment

NOTE:

After mounting the subframe and brackets loosely, align all of the installation reference holes in the subframe, in the subframe front bracket, and in the body using a screwdriver or tapered punch as a guide, then tighten the bolts.
After reinstalling all removed parts, check and adjust the front wheel alignment (see WHEEL ALIGNMENT ).

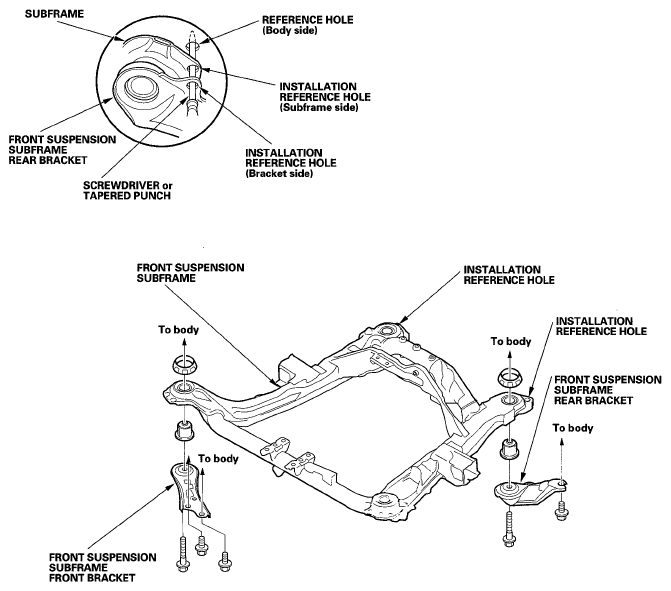

Fig 1: Exploded View Of Front Subframe
Courtesy of AMERICAN HONDA MOTOR CO., INC.
