Climate Control Unit Connector End View
Climate Control Unit Connector End View

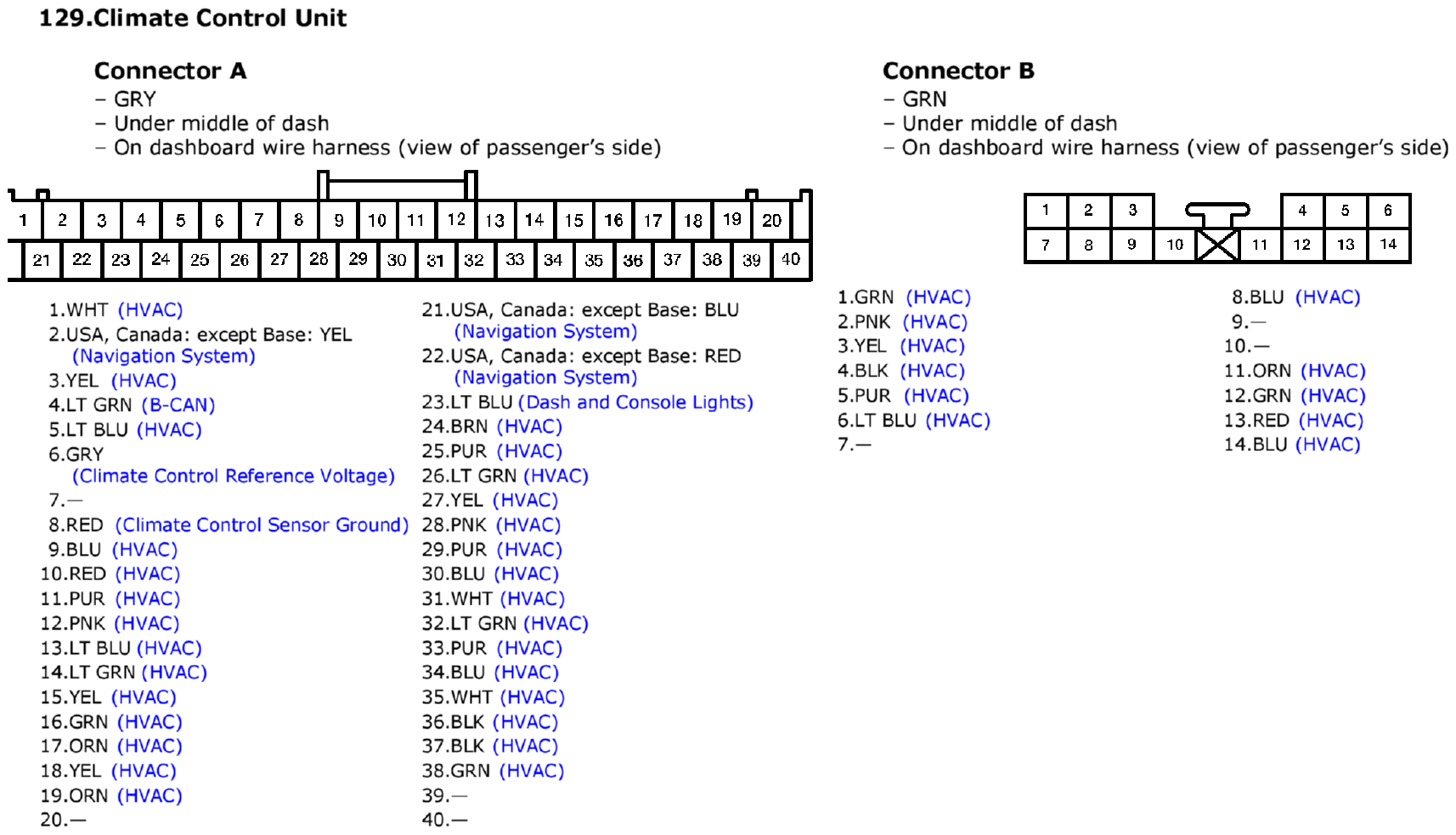

Fig 1: Climate Control Unit Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
