Front Vertical Acceleration Sensor Connector End View
Front Vertical Acceleration Sensor Connector End View

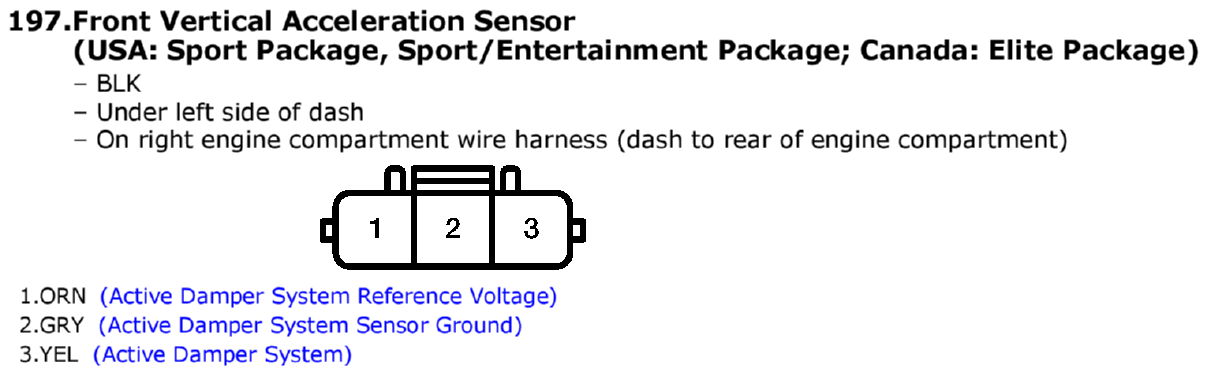

Fig 1: Front Vertical Acceleration Sensor Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
