Headlight Leveling Control Unit Connector End View
Headlight Leveling Control Unit Connector End View

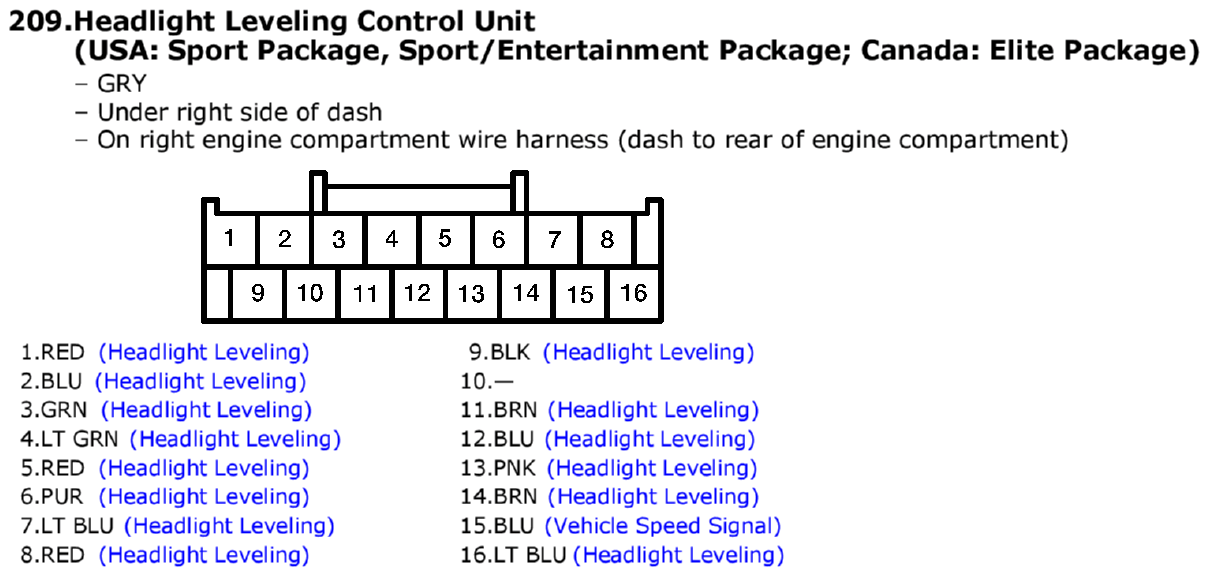

Fig 1: Headlight Leveling Control Unit Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
