Left Power Mirror Position Sensor Connector End View
Left Power Mirror Position Sensor Connector End View

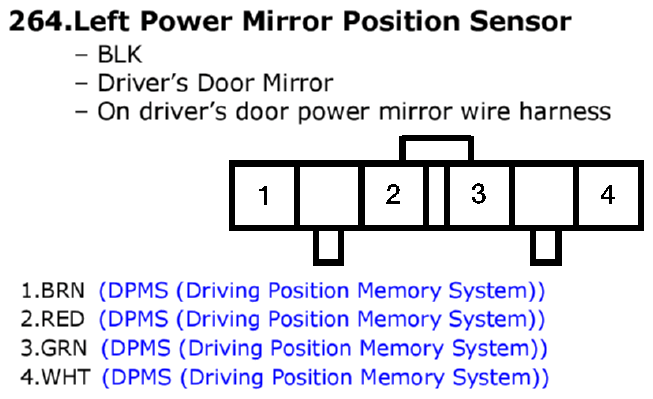

Fig 1: Left Power Mirror Position Sensor Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
