Relays And Control Unit Locations: Dashboard

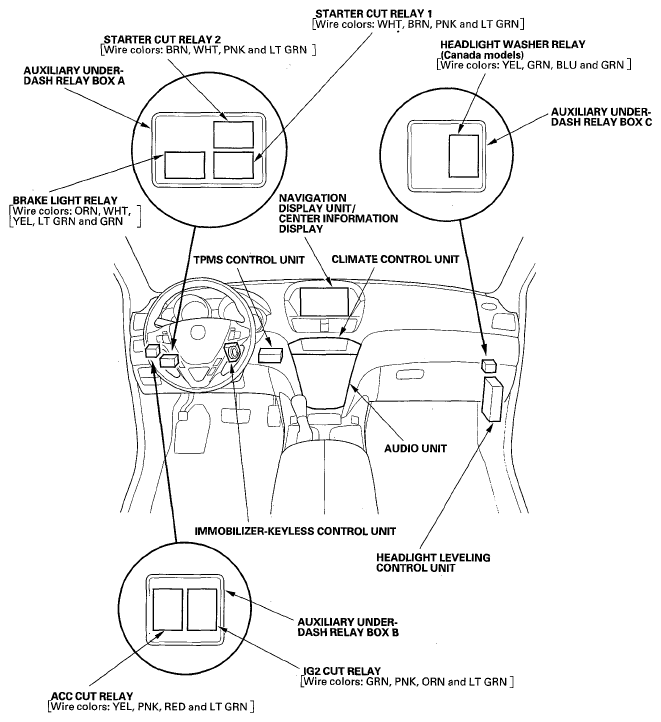

Fig 1: Identifying Relay And Control Unit Locations (Dashboard) (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

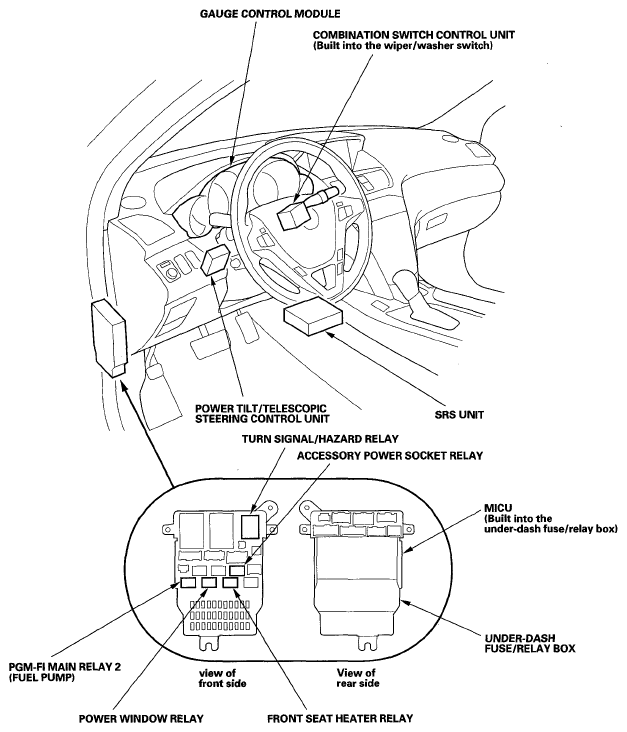

Fig 2: Identifying Relay And Control Unit Locations (Dashboard) (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
