Repair and Diagnosis
›
Electrical
›
Component Locations
›
Relays And Control Unit Locations
›
Engine Compartment
Engine Compartment

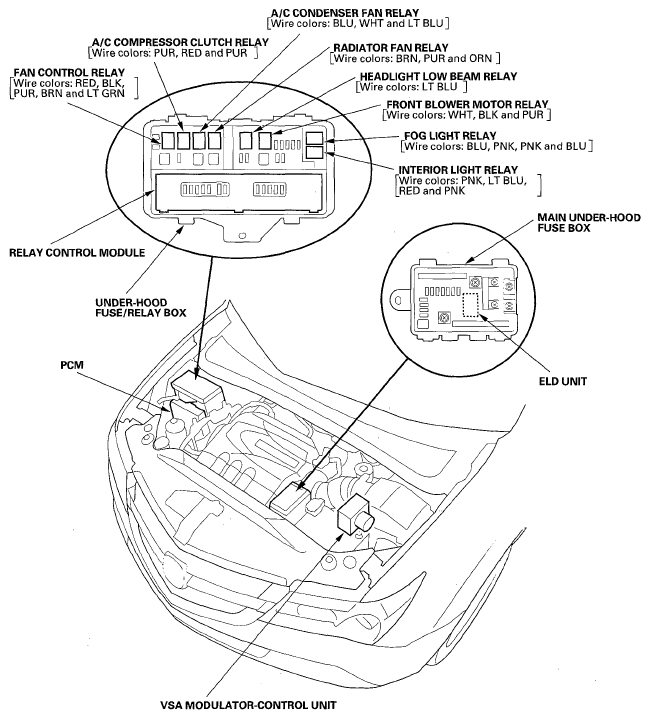

Fig 1: Identifying Relay And Control Unit Locations (Engine Compartment)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
