Home › Acura › 2007 › MDX › Repair and Diagnosis › Engine Performance › System › Advanced Diagnostics › DTC P0615: Starter Cut Relay STRLD Circuit Malfunction › Notes

DTC P0615: Starter Cut Relay STRLD Circuit Malfunction: Notes

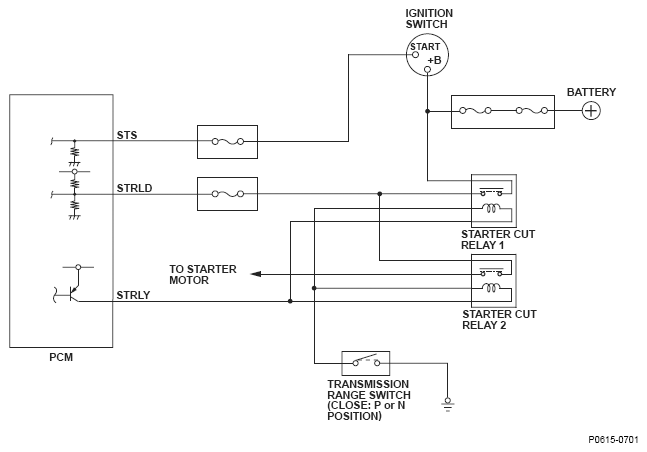

Fig 1: Starter Cut Relay STRLD - Circuit Diagram
G04835928
