System Description
›
Vacuum Distribution
Vacuum Distribution

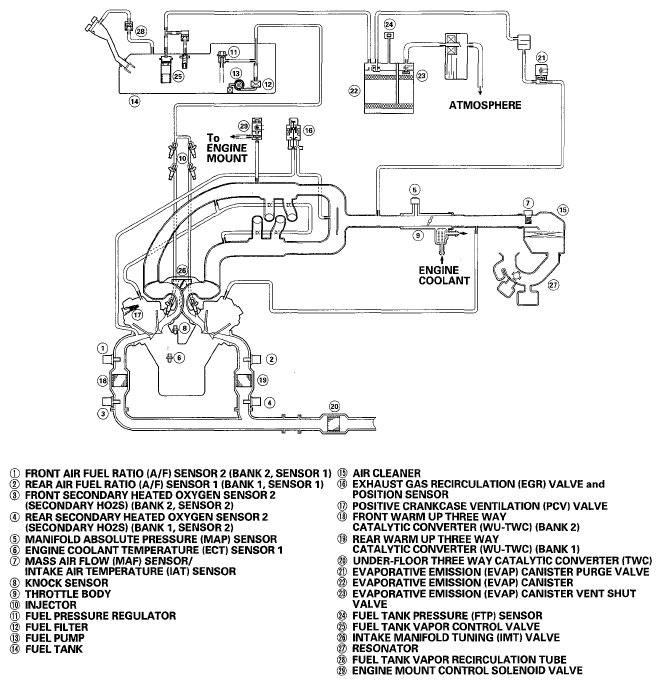

Fig 1: Vacuum Distribution - System Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
