Fuel Line Inspection

Check the fuel system lines and hoses for damage, leaks, and deterioration. Replace any damaged parts.

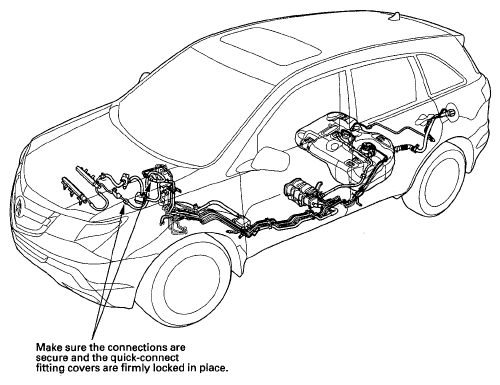

Fig 1: Identifying Fuel Line Routing

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Check all clamps, and retighten if necessary.

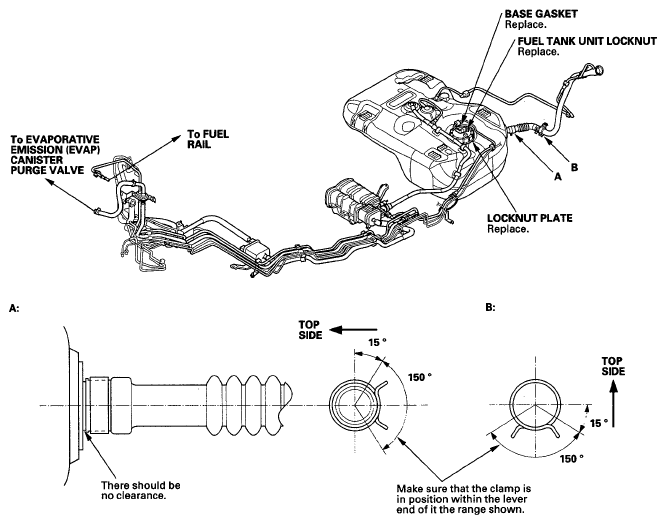

Fig 2: Identifying Clamp Position Angle

Courtesy of AMERICAN HONDA MOTOR CO., INC.
