Front Inner Fender Replacement

WARNING: This page is about a different car, the 2006 Acura MDX, 2005 Acura MDX, 2004 Acura MDX, and 2003 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Take care not to scratch the body.
  1. Remove the front inner fender (A).
    • -1 Remove the screws (B), then remove the front splash guard (C).
    • -2 Remove the bolts (D) securing the front bumper (E) and front inner fender.
    • -3 Remove the clips (F, G) securing the front inner fender (and splash shield (H)) on the body.
    • -4 Remove the front inner fender.

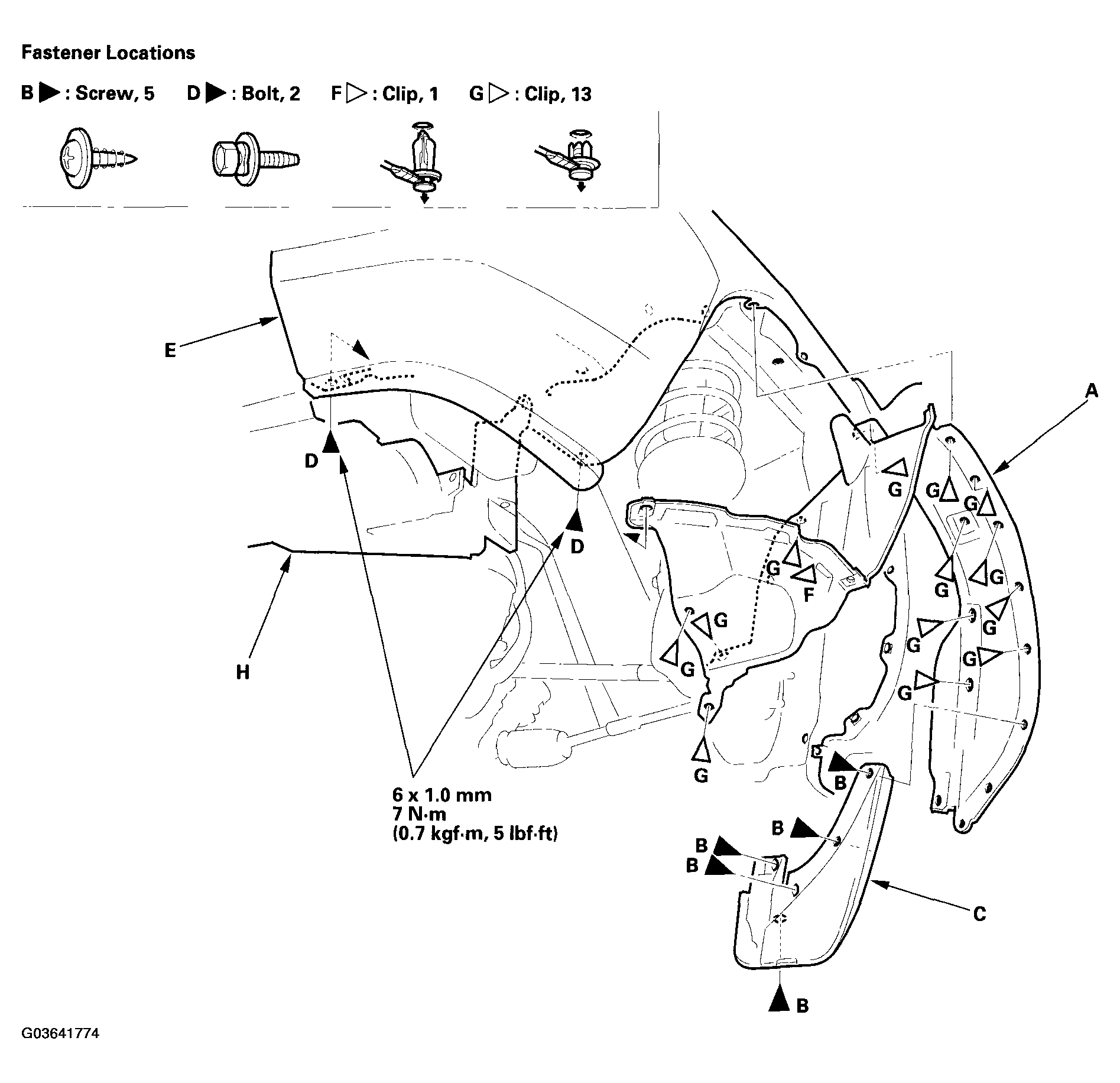

      Fig 1: Removing Front Inner Fender
      G03641774Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the inner fender in the reverse order of removal, and note these items:
    • Check the clips for damage or stress-whitening, and replace them with new one.
    • Push the clips into place securely.
