DTC Indicator E: An Open In The Sunlight Sensor Circuit

WARNING: This page is about a different car, the 2006 Acura MDX, 2005 Acura MDX, 2004 Acura MDX, and 2003 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the sunlight sensor 2P connector.
Disconnect climate control unit connector B (26P).
Check for continuity between the No. 19 terminal of climate control unit connector B (26P) and the No. 1 terminal of the sunlight sensor 2P connector.

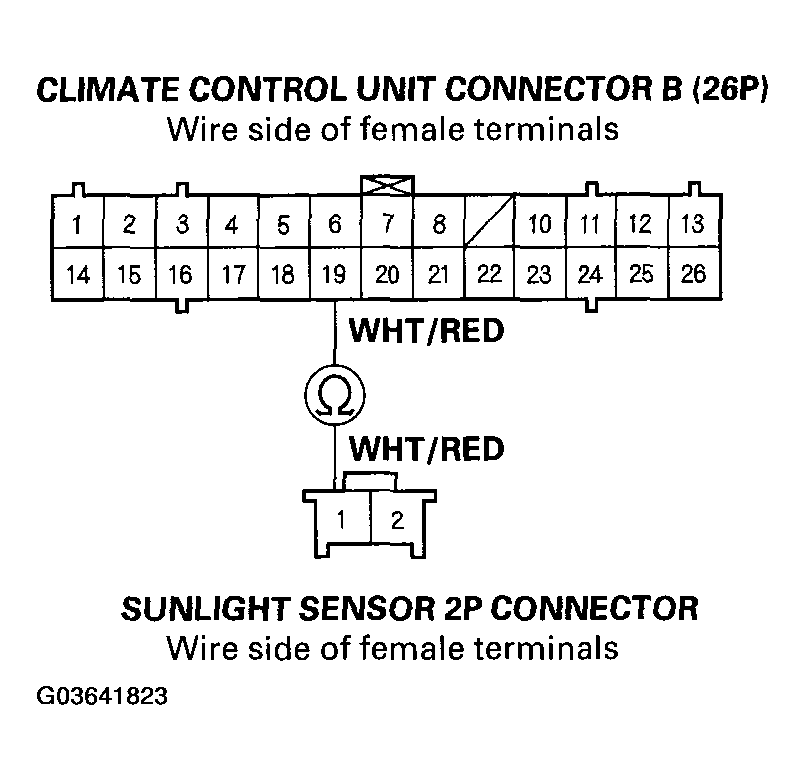

Fig 1: Checking For Continuity Between No. 19 Terminal Of Climate Control Unit Connector B
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?
1. YES - Go to step 4.
2. NO - Repair open in the wire between the climate control unit and the sunlight sensor.
Check for continuity between the No. 1 terminal of climate control unit connector B (26P) and the No. 2 terminal of the sunlight sensor 2P connector.

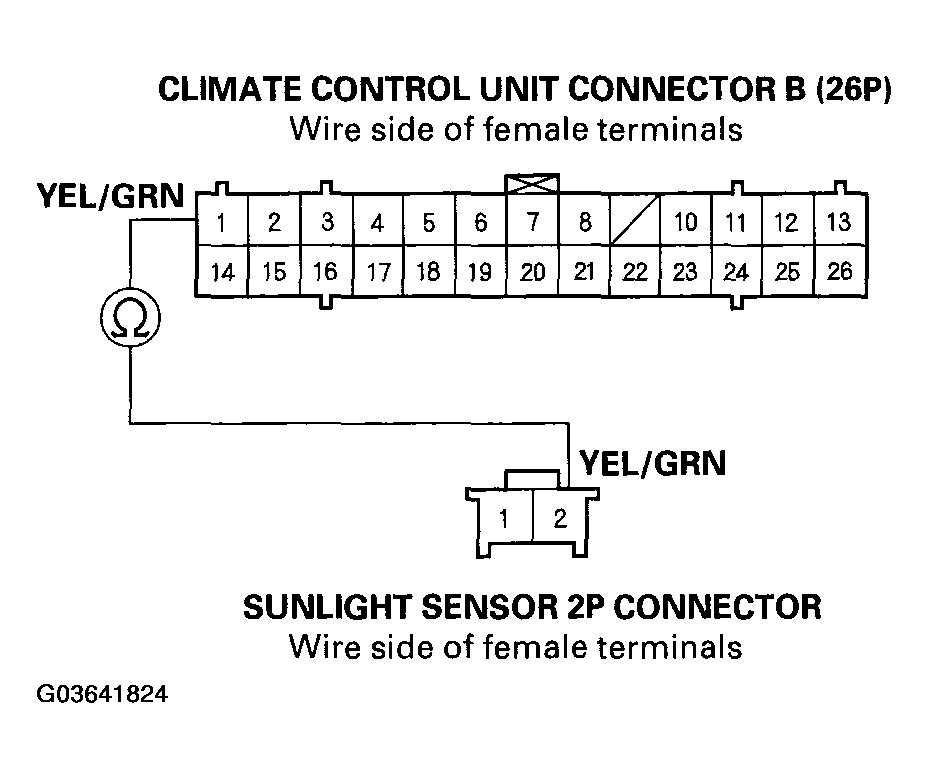

Fig 2: Checking For Continuity Between No. 1 Terminal Of Climate Control Unit Connector B
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?
1. YES - Go to step 5.
2. NO - Repair open in the wire between the climate control unit and the sunlight sensor.
Reconnect the sunlight sensor 2P connector.
Reconnect climate control unit connector B (26P).
Test the sunlight sensor (see SUNLIGHT SENSOR TEST ).
Does the sunlight sensor test OK?
1. YES - Check for loose wires or poor connections at climate control unit connector B (26P) and at the sunlight sensor 2P connector. If the connections are good, substitute a known-good climate control unit, and recheck. If the symptom/indication goes away, replace the original climate control unit.
2. NO - Replace the sunlight sensor.
