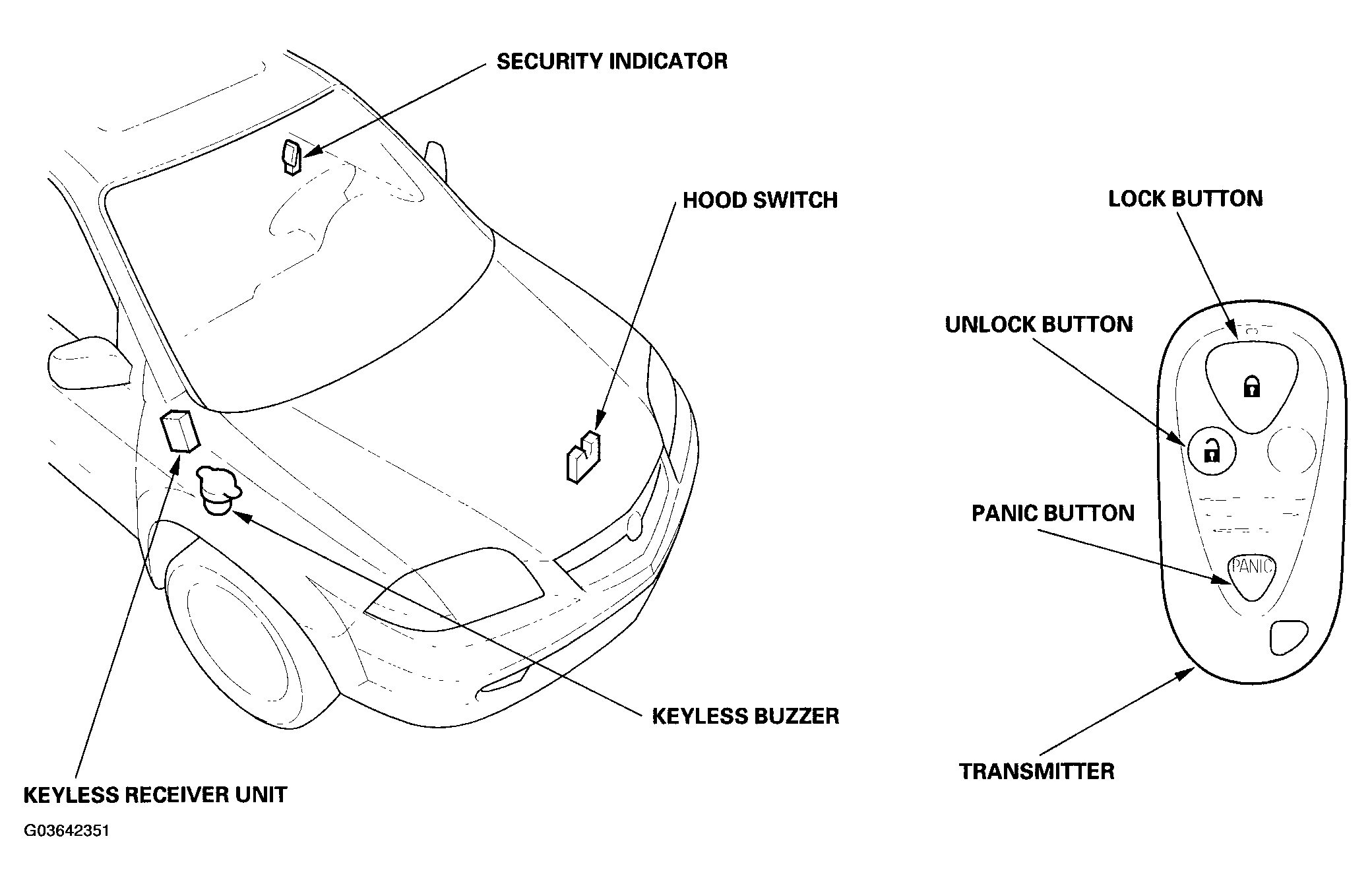

Fig 1: Identifying Keyless/Power Door Locks/Security System Components Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.

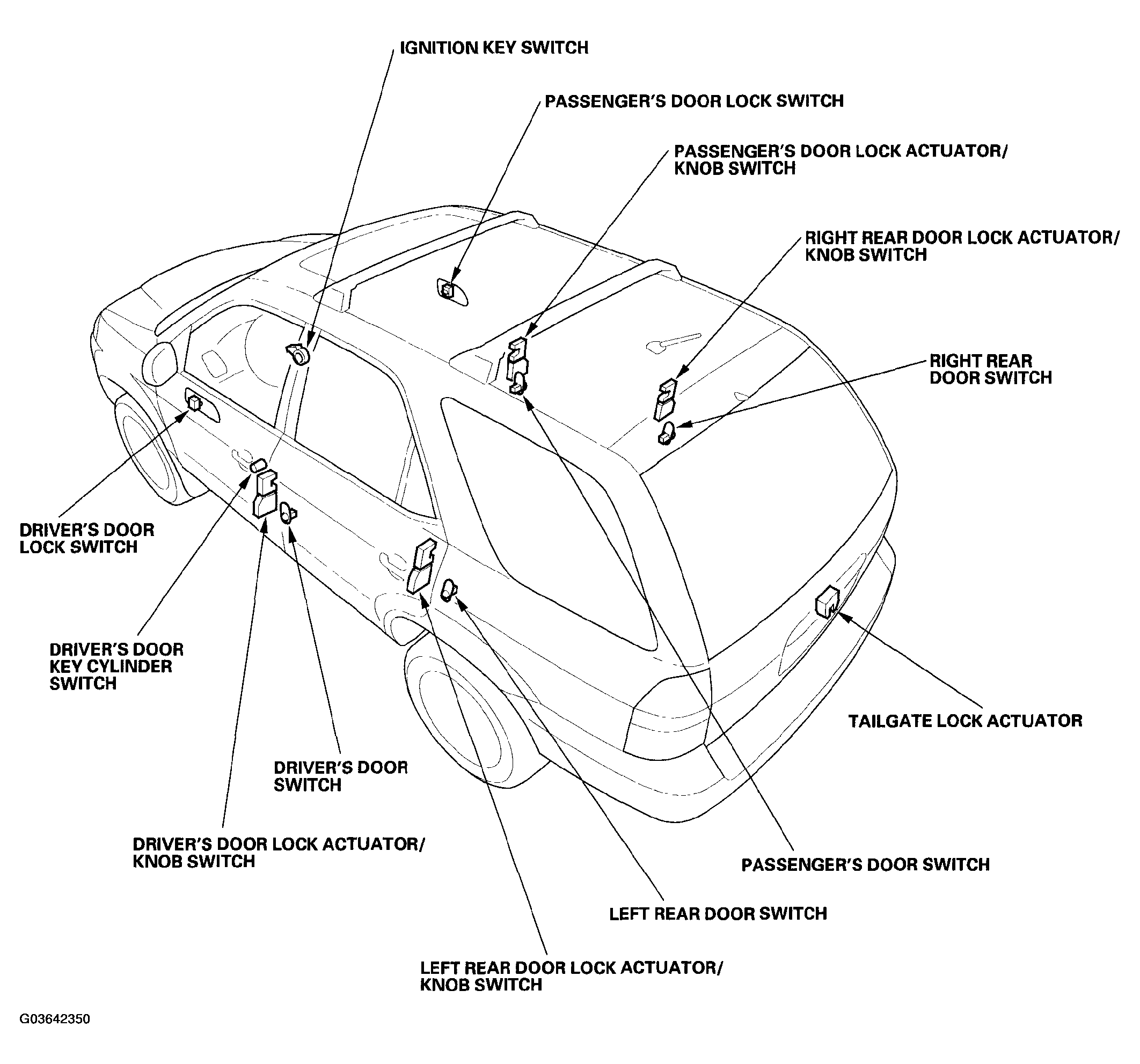

Fig 2: Identifying Keyless/Power Door Locks/Security System Components Location
