Hood Switch Test

WARNING: This page is about a different car, the 2006 Acura MDX, 2005 Acura MDX, 2004 Acura MDX, and 2003 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Disconnect the 2P connector from the hood switch.

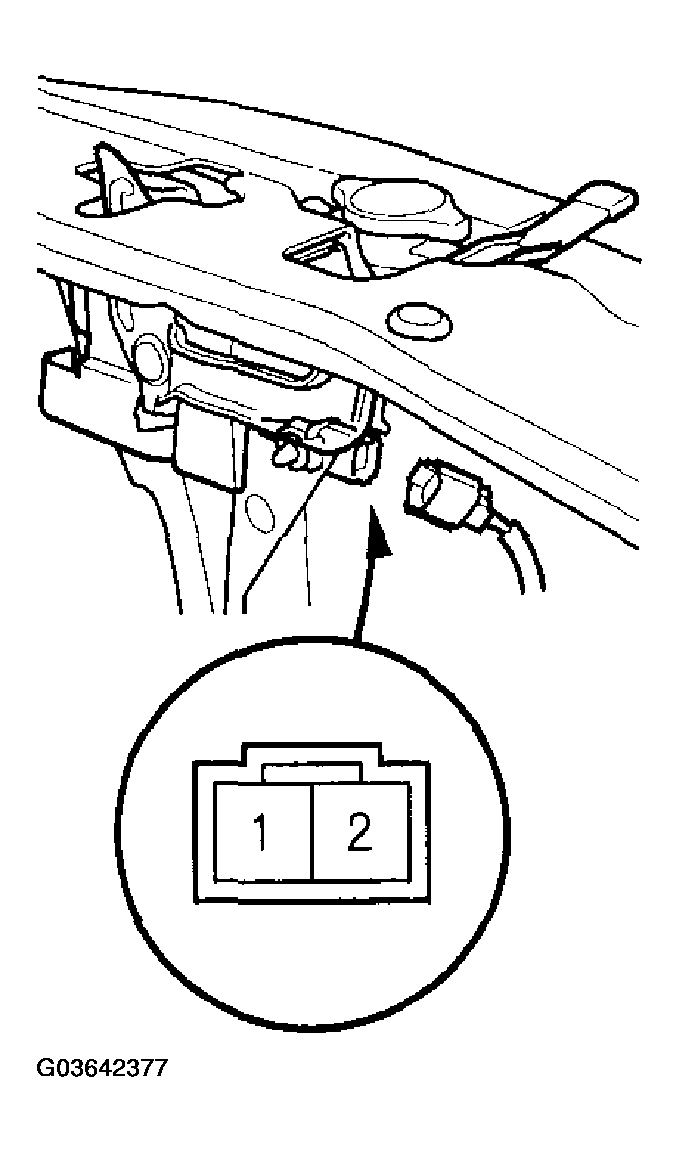

    Fig 1: Disconnecting 2P Connector From Hood Switch
    G03642377Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Check for continuity between the terminals.
    • There should be continuity between the No. 1 and No. 2 terminals when the hood is opened (lever released).
    • There should be no continuity between the No. 1 and No. 2 terminals when the hood is closed (lever pushed down).
  4. If the continuity is not as specified, replace the switch.
