Front Tweeter

WARNING: This page is about a different car, the 2006 Acura MDX, 2005 Acura MDX, 2004 Acura MDX, and 2003 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
Remove the front tweeter speaker grille (A).

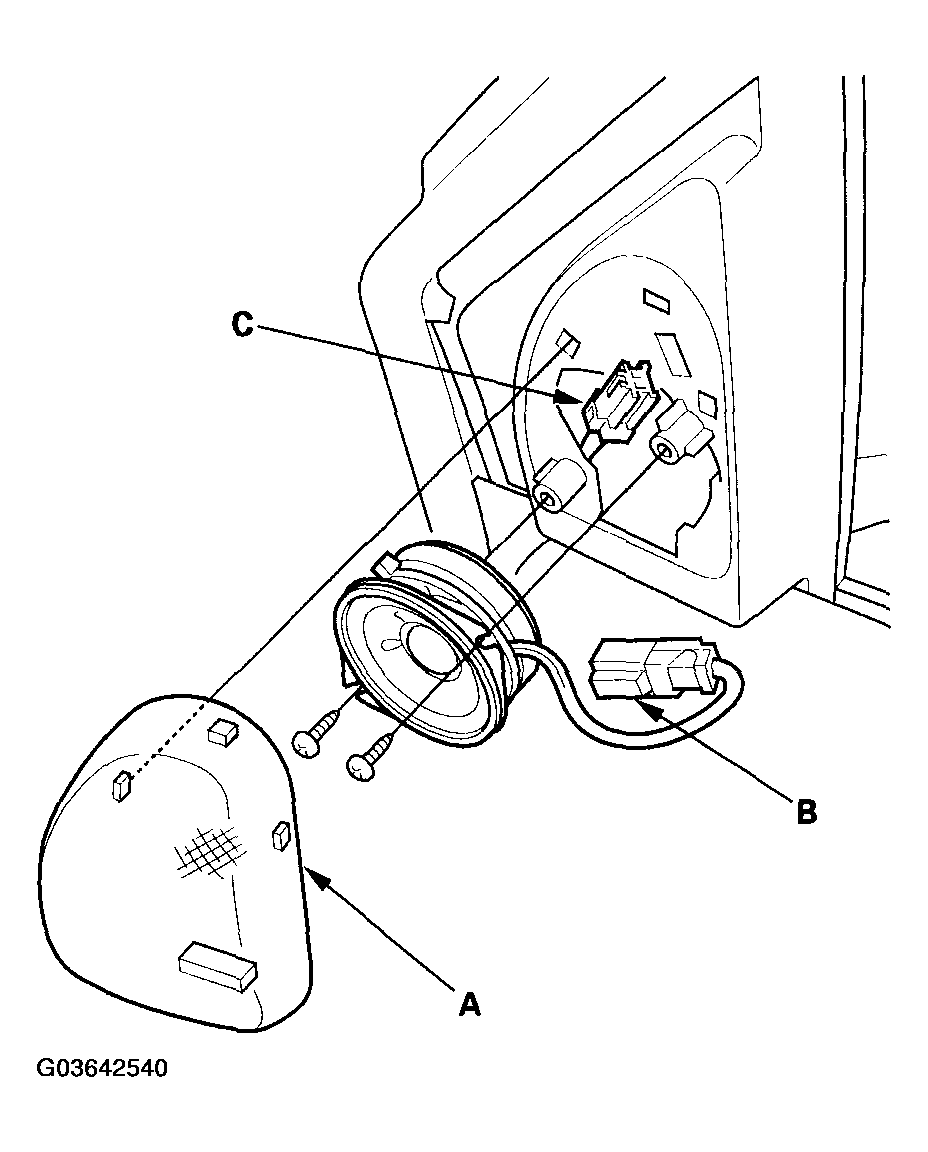

Fig 1: Removing Front Tweeter Speaker Grille
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the harness clip (B).
Remove the two mounting screws and the tweeter.
Disconnect the 2P connector (C) from the tweeter.
Install in the reverse order of removal.
