Exploded View: Notes

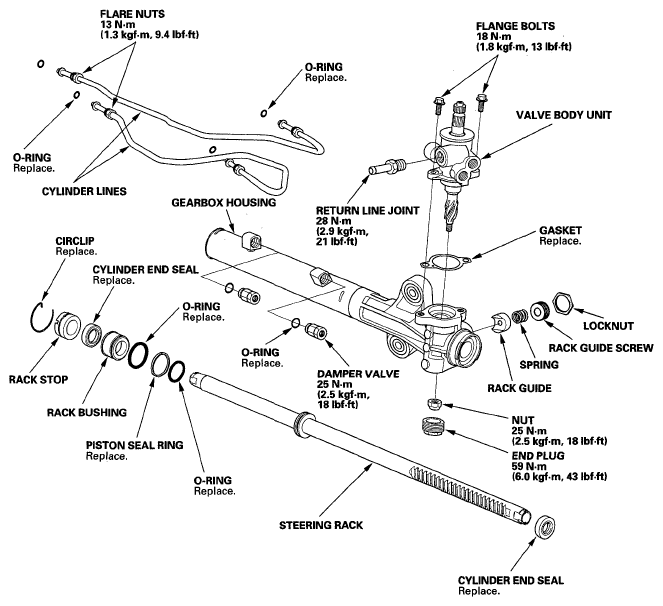

Fig 1: Exploded View Of Steering Gearbox Overhaul With Torque Specifications

G05486462

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required

Driver handle, 480 mm 070GD-0010100
Driver head 07946-MJ00201
Piston seal ring guide 07LAG-SM40100
Piston seal ring sizing tool 07LAG-SM40200
Driver 07749-0010000
Attachment, 42 x 47 mm 07746-0010300
Pincer Oetiker 1098, or equivalent, commercially available

NOTE: Refer to the EXPLODED VIEW as needed during the following procedure.
