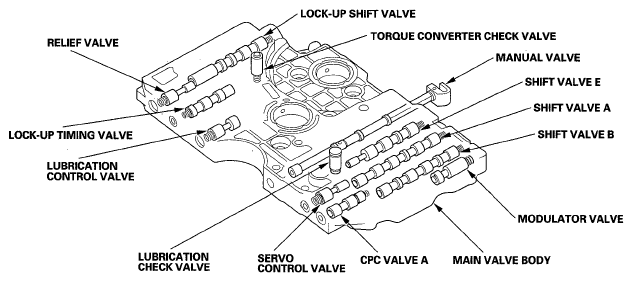

Main Valve Body
The main valve body contains the manual valve, the modulator valve, the torque converter check valve, shift valve A, shift valve B, shift valve D, shift valve E, CPC valve C, the relief valve, the lock-up shift valve, the lock-up timing valve, the lubrication control valve, the lubrication check valve, and the ATF pump gears. The primary function of the main valve body is to switch fluid pressure on and off to control hydraulic pressure going to the hydraulic control system.
