Exploded View

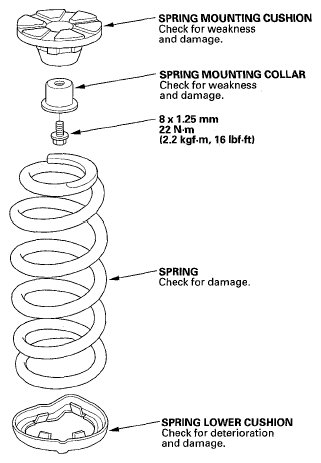

Fig 1: Exploded View Of Spring With Torque Specifications
G05445753Courtesy of AMERICAN HONDA MOTOR CO., INC.
