Component Location Index

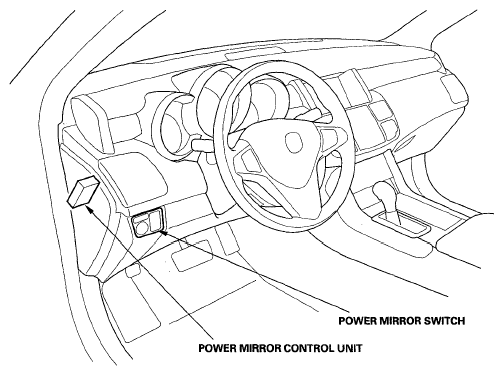

Fig 1: Identifying Driver Position Memory System Components (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

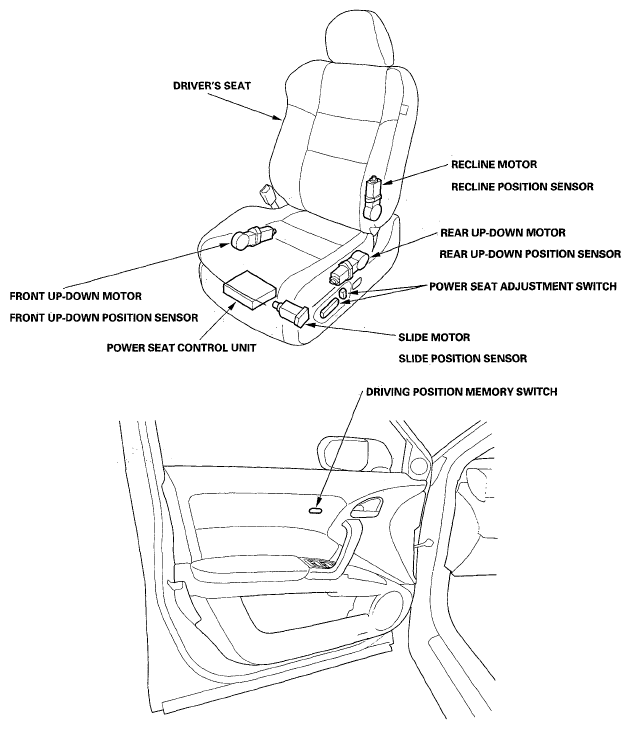

Fig 2: Identifying Driver Position Memory System Components (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
