Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

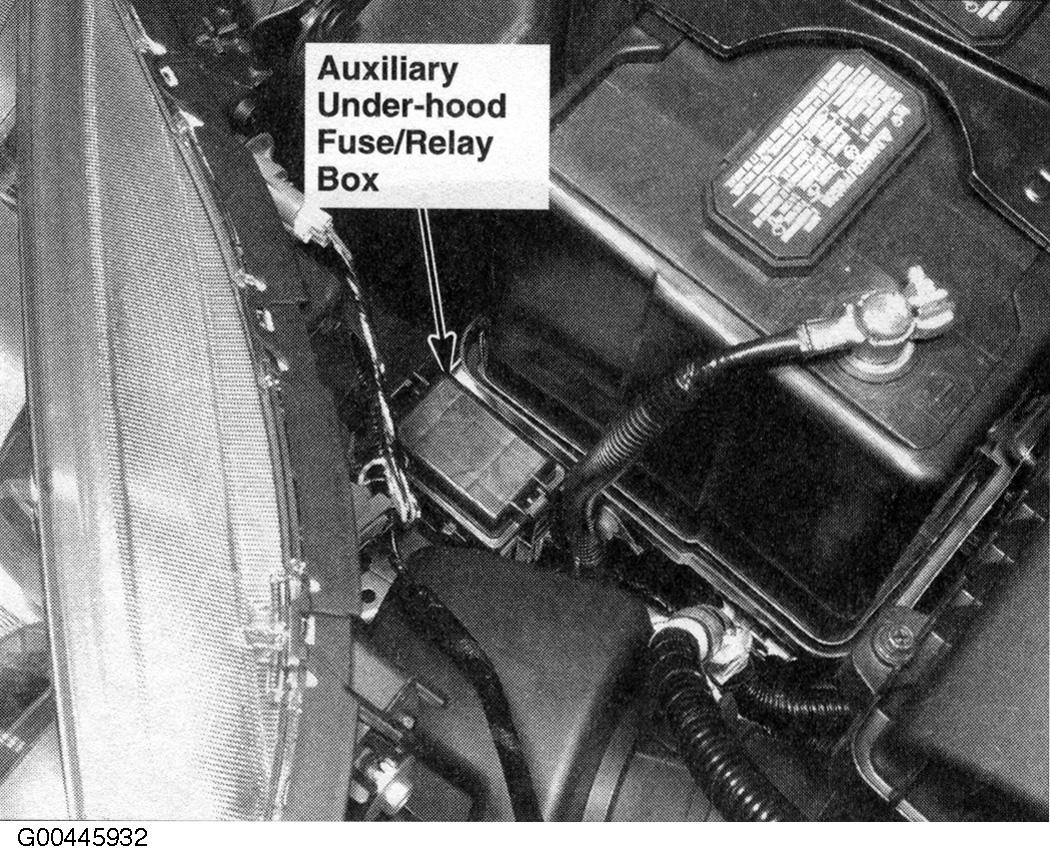

| Auxiliary Under-Hood Fuse/Relay Box | Left front of engine compartment. See Figure. |

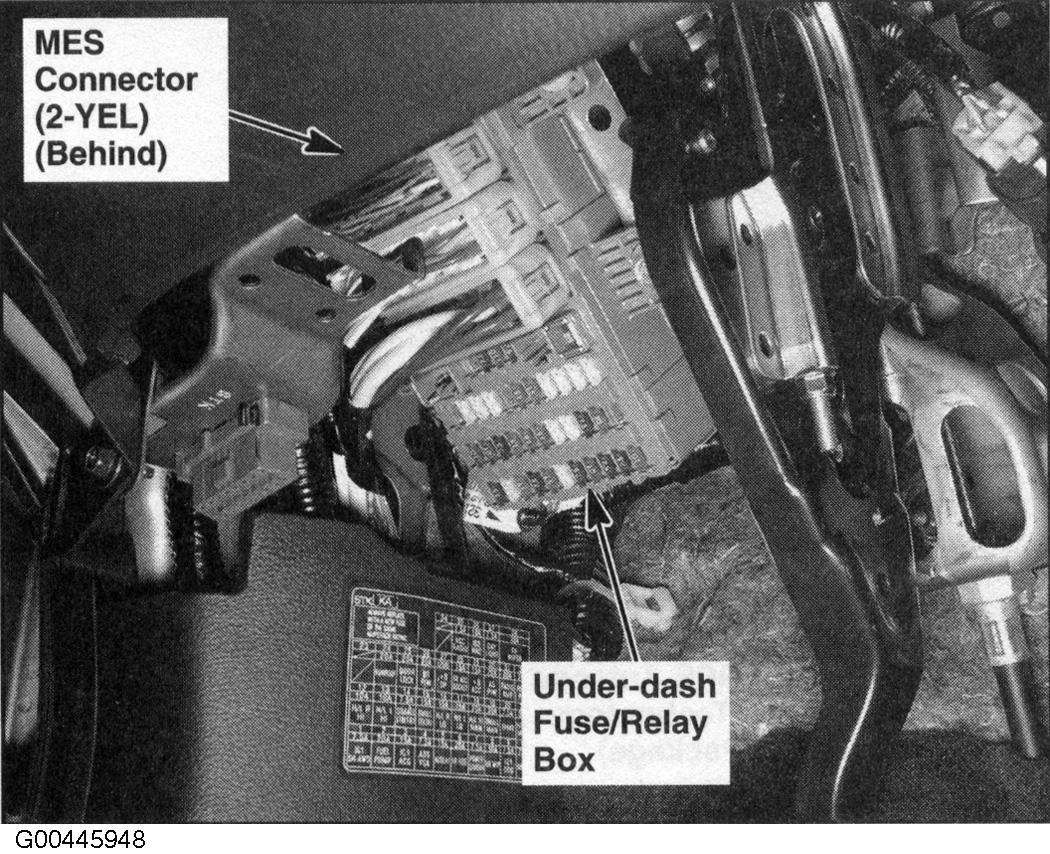

| Under-Dash Fuse/Relay Box | Under left end of dash. See Figure. |

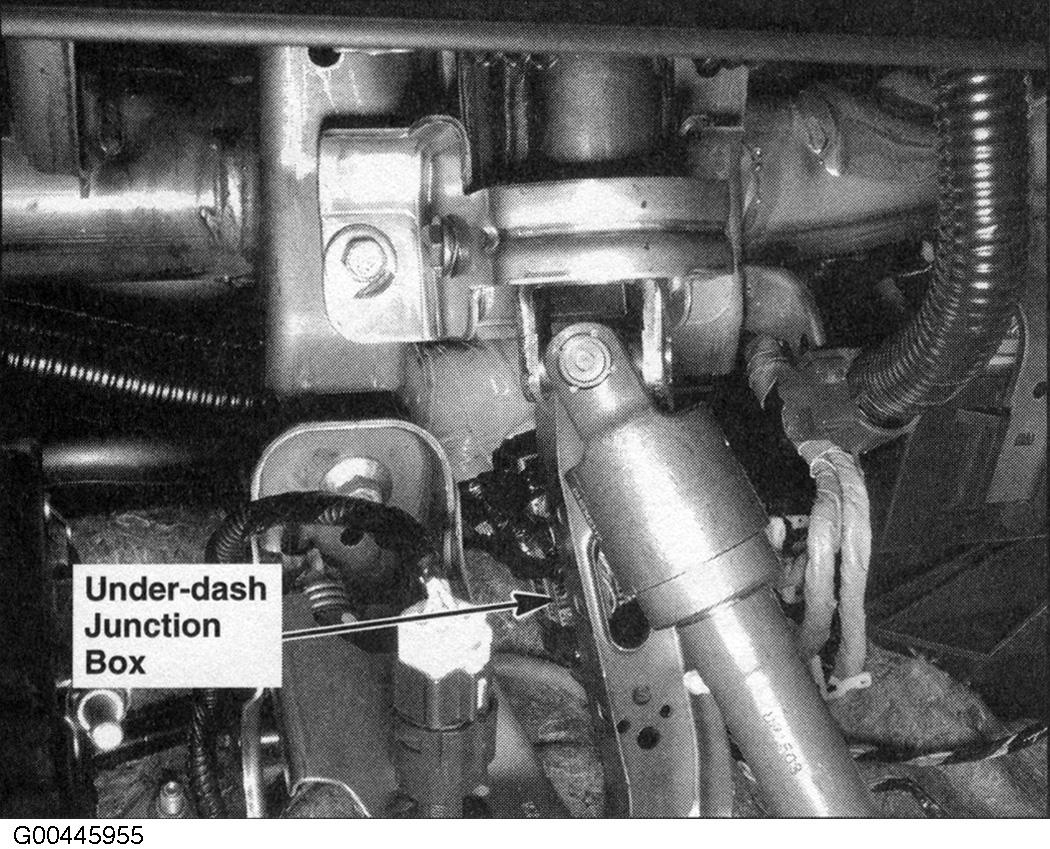

| Under-Dash Junction Box | Under left side of dash. See Figure. |

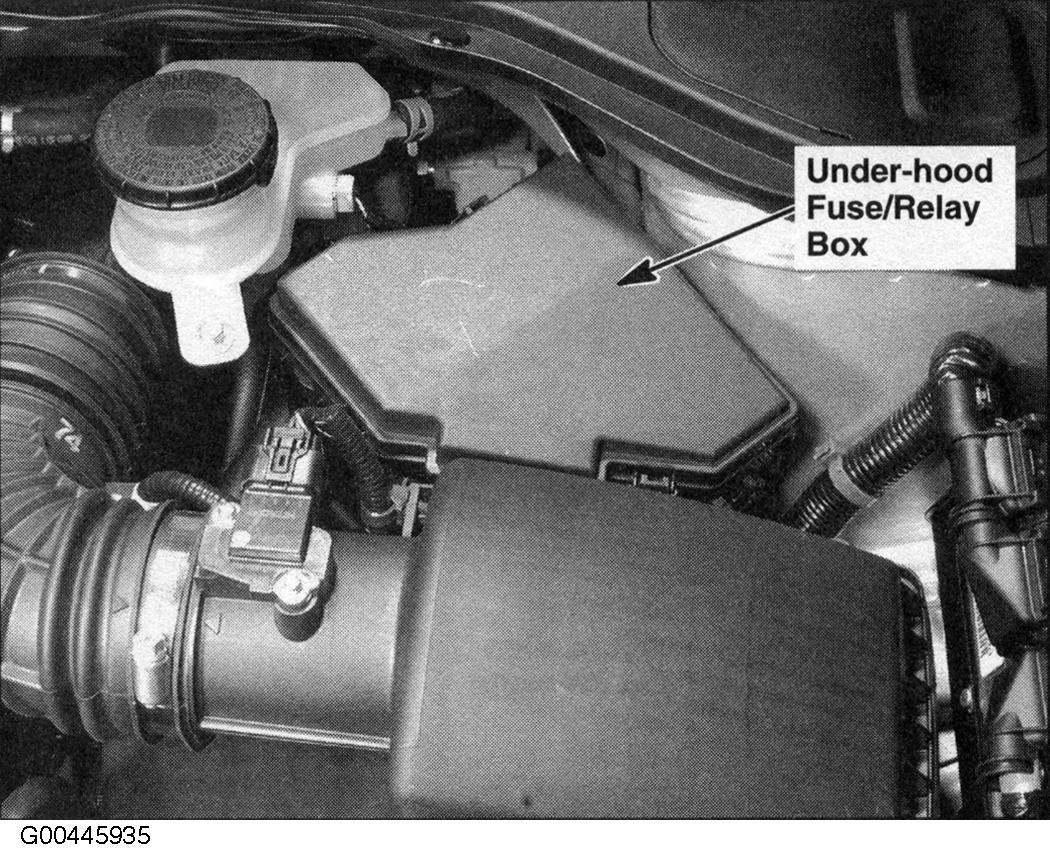

| Under-Hood Fuse/Relay Box | Left rear of engine compartment. See Figure. |
