Component Location Index

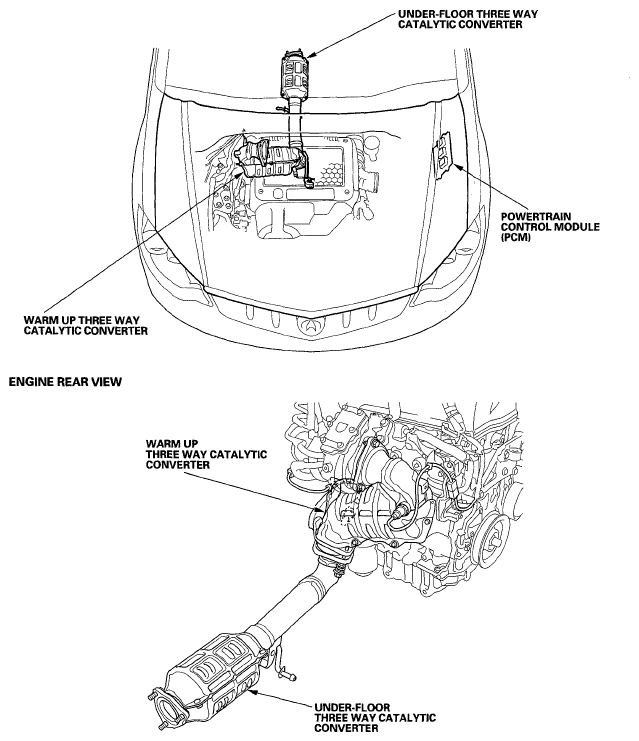

Fig 1: Identifying Catalytic Converter System Components Location
G05444828Courtesy of AMERICAN HONDA MOTOR CO., INC.
