Intake Manifold Removal and Installation
›
Exploded View
›
Notes
Exploded View: Notes

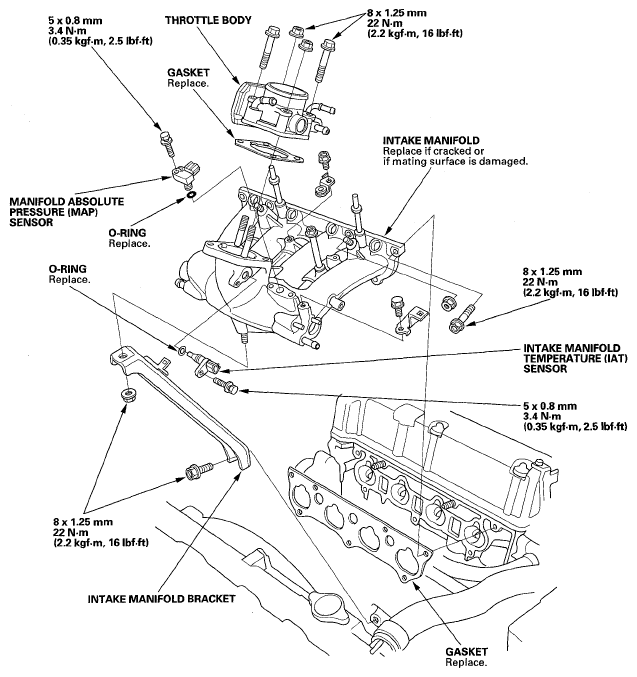

Fig 1: Intake Manifold Replacement Components With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
