Oil Jet Replacement

  1. Remove the oil pump (see OIL PUMP REMOVAL ).
  2. Remove the baffle plate (see step 7 under CRANKSHAFT AND PISTON REMOVAL ).
  3. Remove the oil jet bolt (A), then remove the oil jet (B).

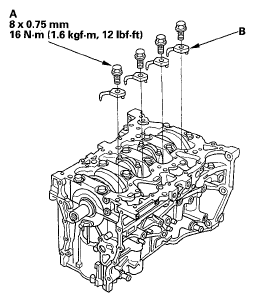

    Fig 1: Oil Jet Bolts With Torque Specifications
    G05446810Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Carefully install the oil jet, and tighten the oil jet bolt.
  5. Install the baffle plate (see step 23 under CRANKSHAFT INSTALLATION ).
  6. Install the oil pump (see OIL PUMP INSTALLATION ).
