Sealing Bolt Installation

NOTE: When installing the sealing bolts (A), (B), and (C), always use a new washer (except for the bolt (D)).

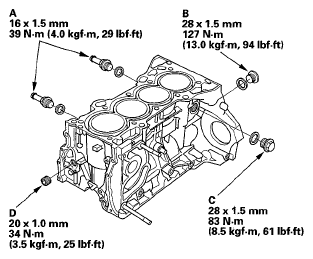

Fig 1: Sealing Bolts With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.
