DTC P2263: Turbocharger Boost System Performance Problem: Notes

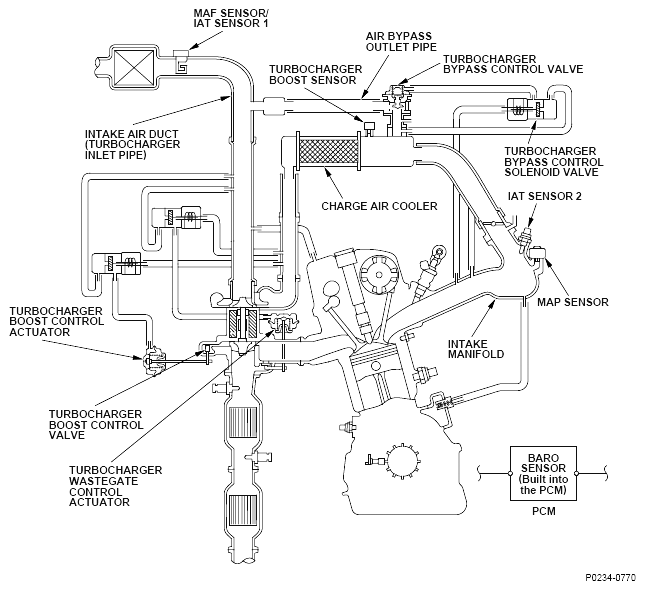

Fig 1: DTC P2263 Turbocharger Boost System Diagram

G04836211

Fig 2: Boost Pressure Characteristics Graph

G04836481
