Component Location Index

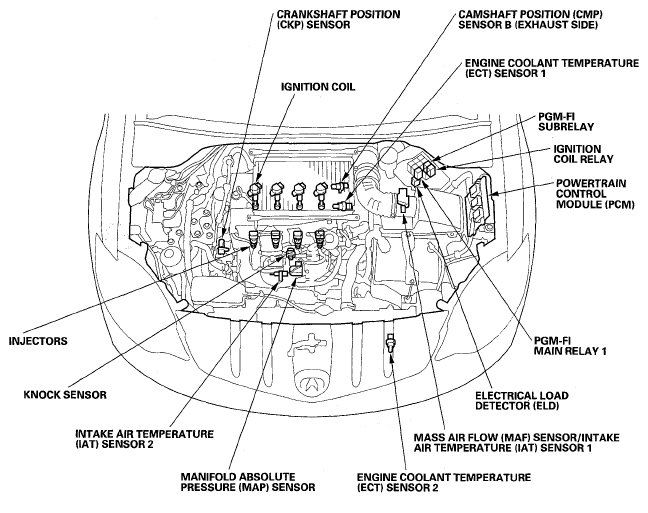

Fig 1: Identifying Location Of PGM-FI System Components (1 Of 3)
G05444468Courtesy of AMERICAN HONDA MOTOR CO., INC.

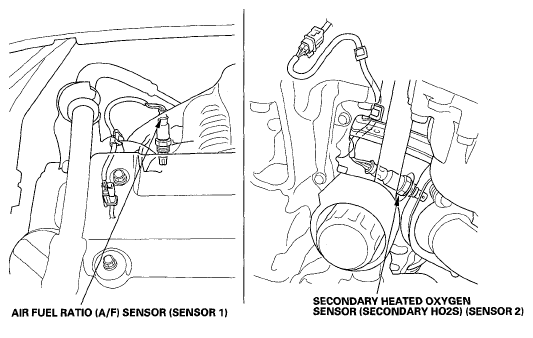

Fig 2: Identifying Location Of PGM-FI System Components (2 Of 3)
G05444469Courtesy of AMERICAN HONDA MOTOR CO., INC.

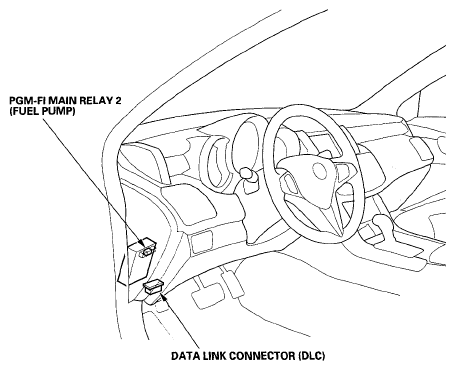

Fig 3: Identifying Location Of PGM-FI System Components (3 Of 3)
G05444470Courtesy of AMERICAN HONDA MOTOR CO., INC.
