Climate control system communication check mode

By pressing the No. 5 button, the climate control unit communication line is checked.

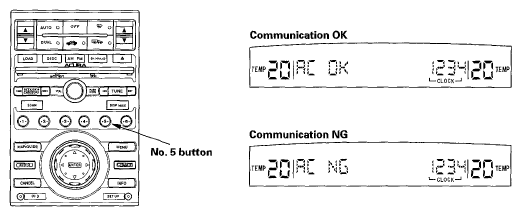

Fig 1: Identifying Climate Control System Communication Check Mode

Courtesy of AMERICAN HONDA MOTOR CO., INC.
