Power Rear Window Sunshade
›
Circuit Diagram
Circuit Diagram

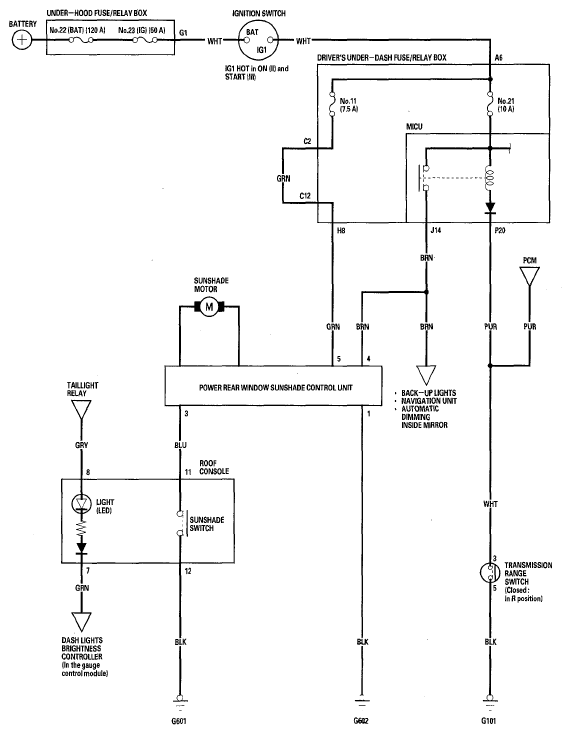

Fig 1: Power Rear Window Sunshade - Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
