Component Location Index

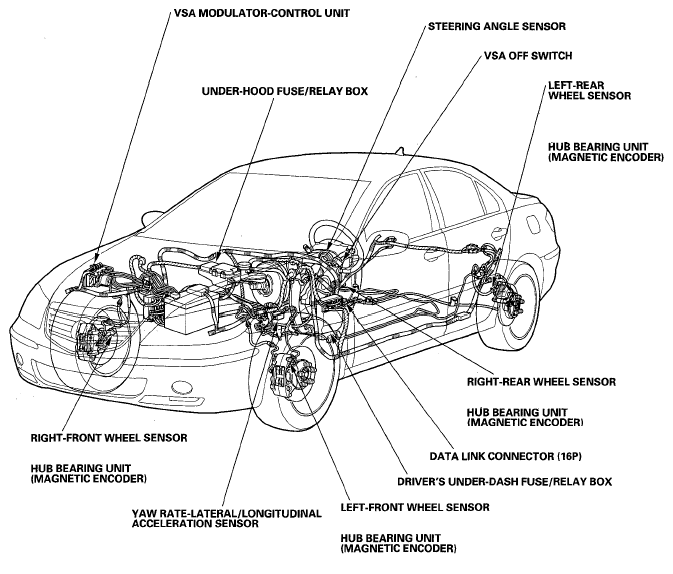

Fig 1: Identifying VSA System Components Location
G05498575Courtesy of AMERICAN HONDA MOTOR CO., INC.
