Wheel Sensor Replacement

NOTE:

• Install the sensor carefully to avoid twisting the wires.
• Replace the clamps (A) when the wheel sensors are removed or replaced.

Front

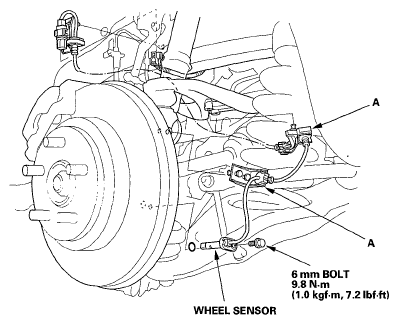

Fig 1: Wheel Sensor Clamps With Torque Specifications - Front

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Rear

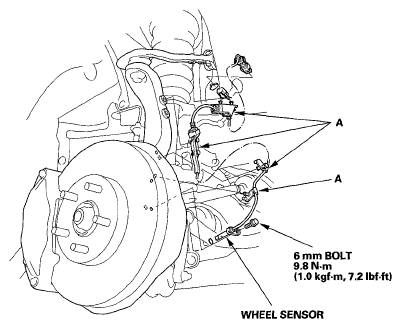

Fig 2: Wheel Sensor Clamps With Torque Specifications - Rear

Courtesy of AMERICAN HONDA MOTOR CO., INC.
