Driver's Door Outer Handle Light/Touch Sensor Connector End View
Driver's Door Outer Handle Light/Touch Sensor Connector End View

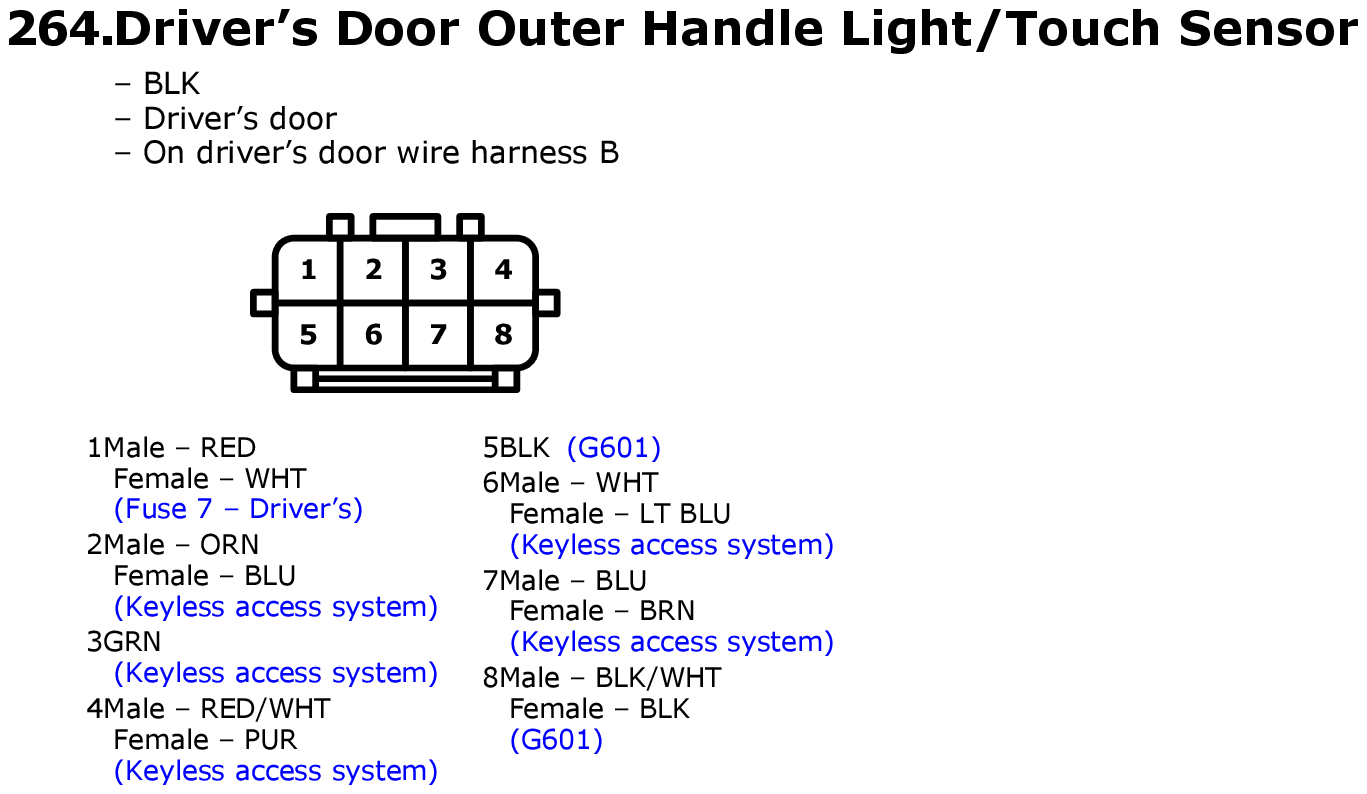

Fig 1: Driver's Door Outer Handle Light/Touch Sensor Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
